Scheduled maintenance
76 4812325556EN 2017-11-22

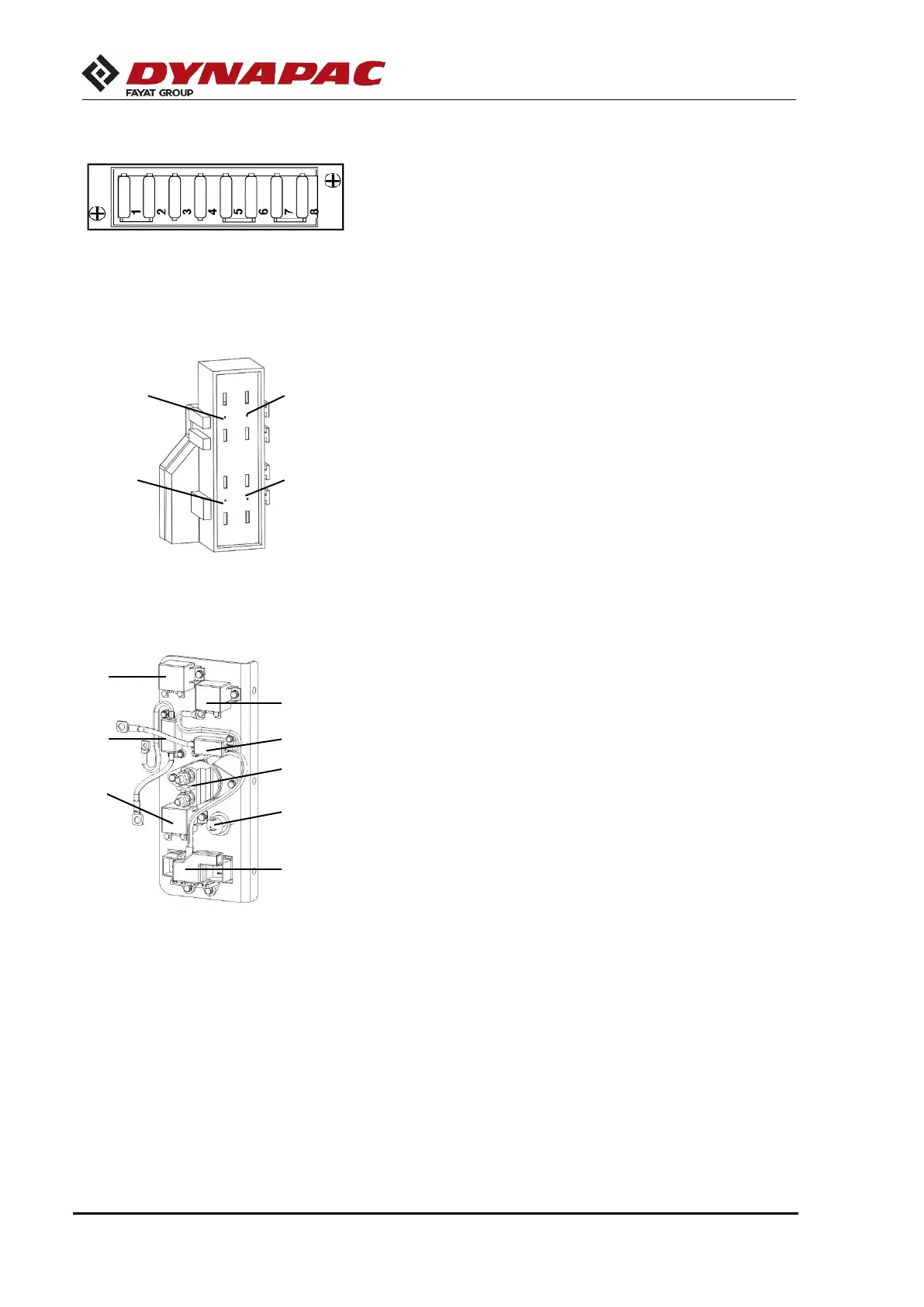

Cab fuse box
1. Indoors lighting (10A)
2. Windscreen wiper/washers, front/rear (10A)
3. Heating (15A)
4. Empty
5. Empty
6. Empty
7. Empty
8. Empty
Main fuse box
9. Main fuse (50A)
10. Empty
11. Cab (50A)
12. Engine (30A)
Main fuses panel
The main fuses panel is near the radiators, on the left side of the
machine.
1. Main switch
2. Pre-heating relay (75A x2)
3. FuseF20 (pre-heating 120A x2)
4. Starting relay (75A)
5. Main fuses
6. 12V socket.
Fig. - Cab fuse box
Fig. Main fuse box
Fig. Main fuses panel
1
2
3
4
5
6
2
3
1
3
2
4
