Edge cutter (option)
To activate the edge cutter, the machine must be in low speed.
When the side panel button (1) is pressed with the machine in
low speed, a hydraulic piston lowers down the edge cutter to the
ground.
The tool can also be lifted if the machine is in the transport
position.
A bypass valve prevents the hydraulic system being overloaded.
To prevent asphalt sticking to the edge cutter, the operator shall
use a separate sprinkler system. It is operated by a switch (2).
The water is supplied on the main tank and it is the same used
in the standard sprinkler system.
Tire pressure adjustment (option)
The operator can vary the pressure during the operation with the
tire air pressure control. It can be variable adjusted with the keys
(2) and (3) on the keypad, within the interval from 240 kPa to
830 kPa (35 to 120 PSI) and can be reduced with the key (3).
The tire pressure level is shown in the lower left corner, on the
Display (1).
When the tire pressure is at the maximum level (830
kPa) or at the minimum level (240 kPa), it will not be
possible to increase/decrease the pressure.

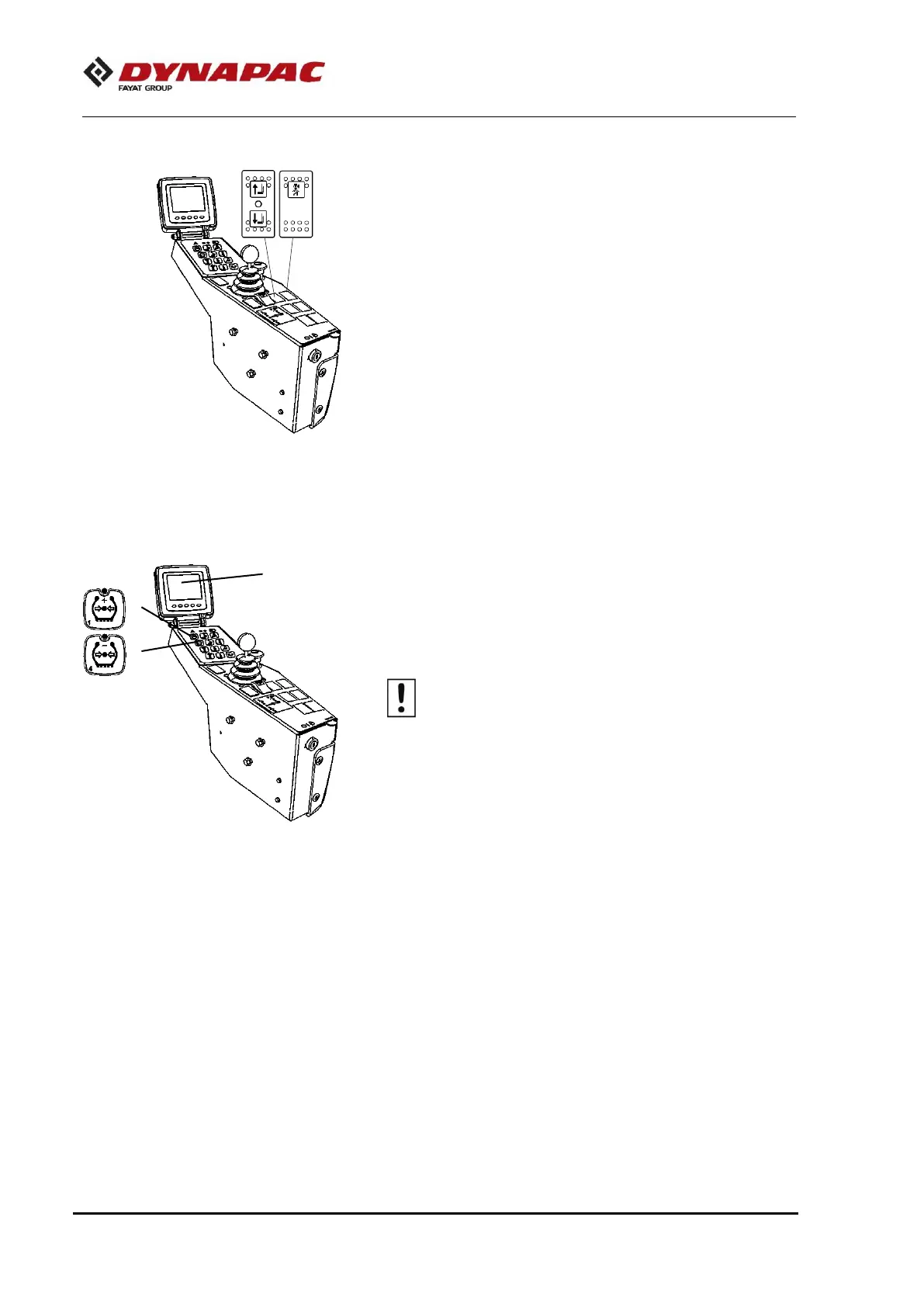

Fig.– Side panel
1. Edge cutter, up and down
2. Edge cutter, sprinkler
