Dynapac CP2700 - Coconut Mats (Option) Application; Applying and Releasing Coconut Mats

Operation
2018-02-19 4812325557EN 45
Coconut mats (option)
To apply the coconut mats (1) on the wheels, follow the
instructions below:
- Hold and lift the handle in the middle of the scraper holder (2).
- Make sure the lock pin (4) releases properly from the locking
hook (3) and allow the scraper to rest against the tires in the
working position.
To release the coconut mats:
- Hold and lift the handle in the middle of the scraper holder (2).
- Make sure the lock pin (4) fits well in the locking hook (3).
1
2
3
4

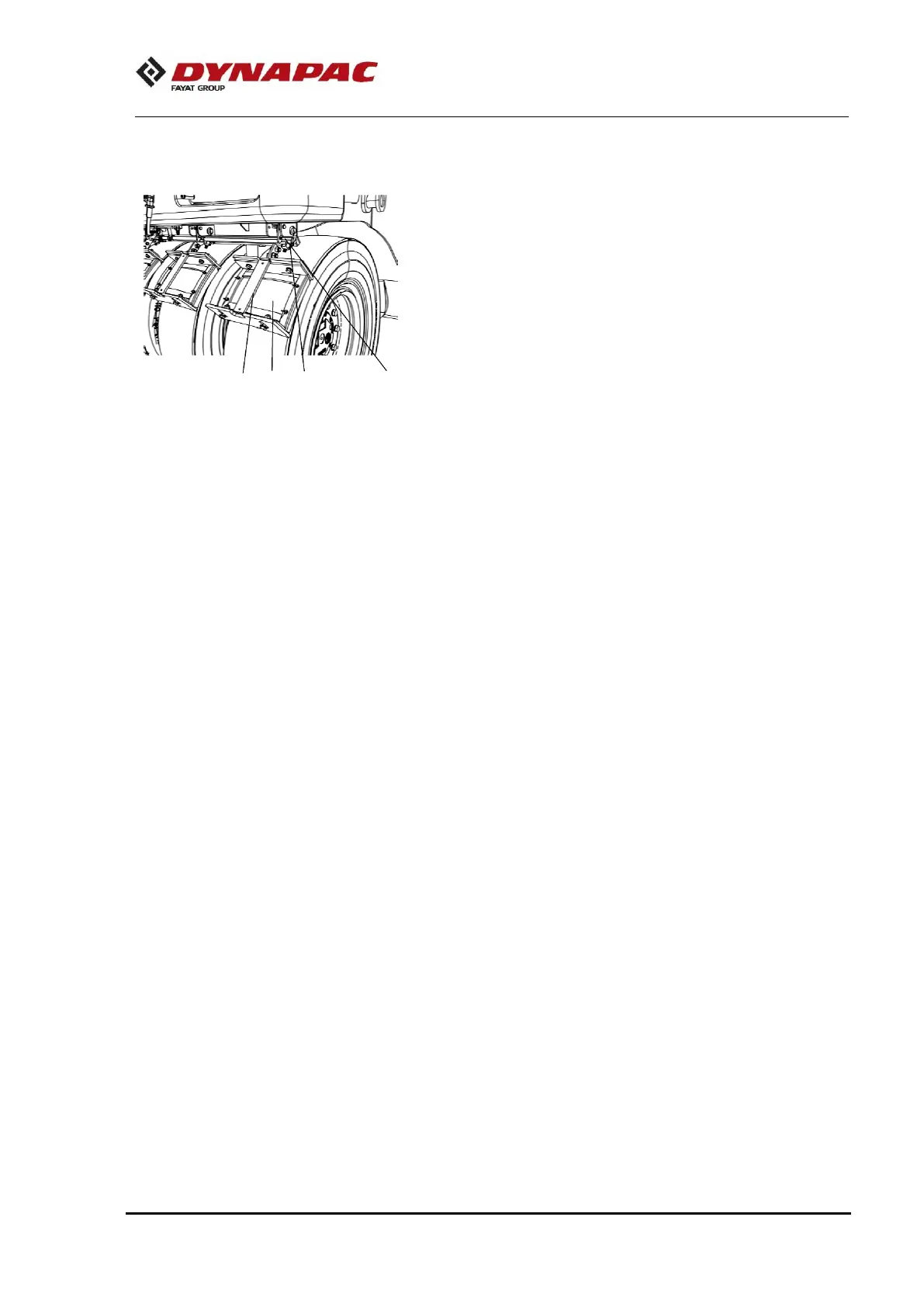

Fig. – Scraper bars adjustment
1. Coconut mats
2. Scraper holder
3. Locking hook
4. Lock pin
