Dynascan DS55LX3 User Manual

DS55LX3 User Manual 16

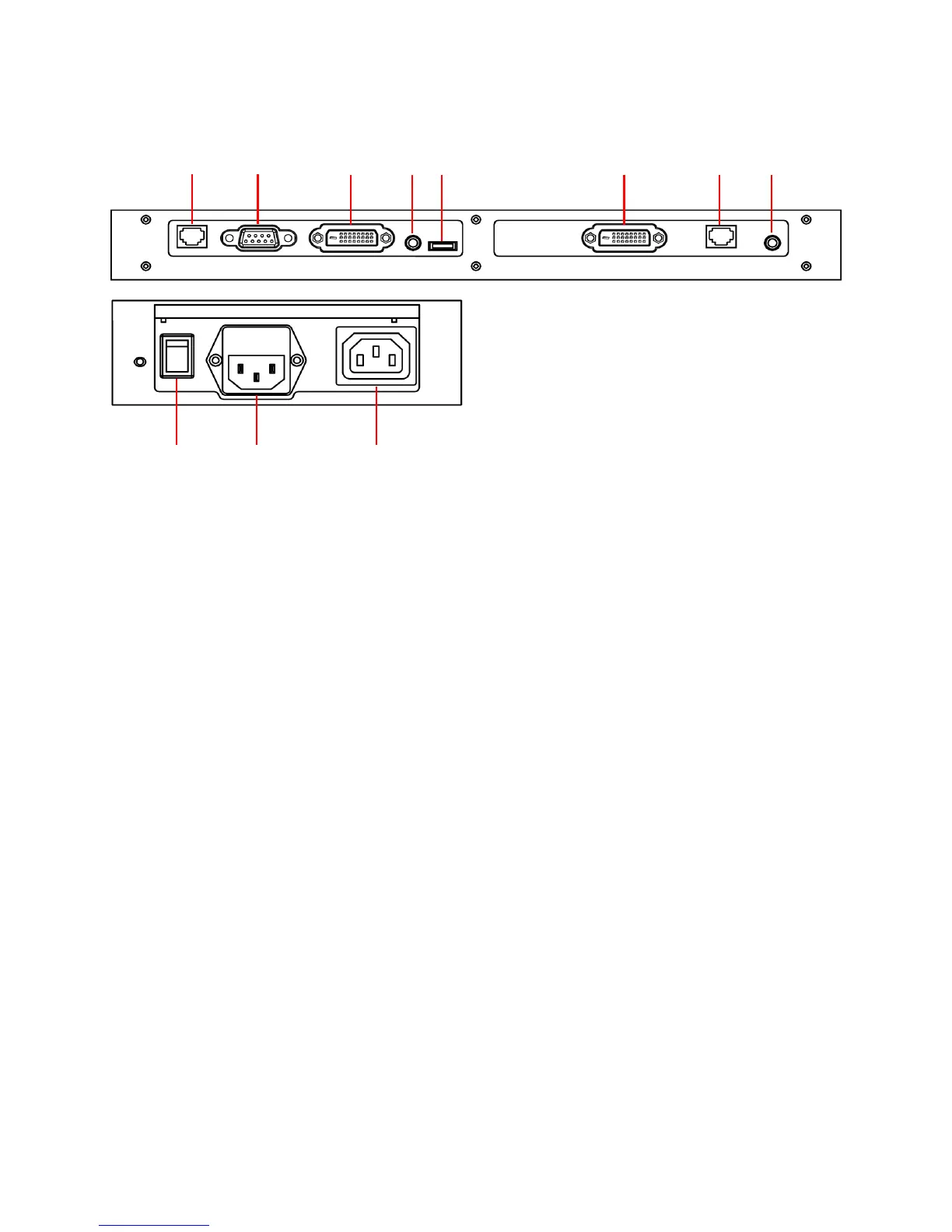

Input / Output Terminals
○
○○
○
1 RS-485 (IN): RS485 control function for the daisy chain application.
○
○○
○
2 RS-232 (IN): RS232C network input connection for the use of remote control from computer.
○
○○
○
3 DVI (IN): Connect the DVI-D output of a PC, or the HDMI output of an AV device by using a DVI-HDMI cable.
○
○○
○
4 Audio (IN): Connect audio input from external AV device.
○
○○
○
5 Extension Connector: Extension Connector for optional IR Extension sensor kit (ESK201).
○
○○
○
6 DVI (OUT): Output the signal from the DVI IN.
○
○○
○
7 RS-485 (OUT): RS485 control function for the daisy chain application.
○
○○
○
8 Audio (OUT): Connect the audio signal output from Audio IN jack to an external AV device.
○
○○
○
9 Power Switch: Press to switch the main power on/off.
○
○○
○
10 AC (IN): Connect the supplied power cord to the wall outlet.
○
○○
○
11 AC (OUT): AC outlet 100~240V up to 100 Watt.
○
6
○
7
○
8
○
9
○
10
○
11
○
5
○
4
○
3
○
2
○
1
