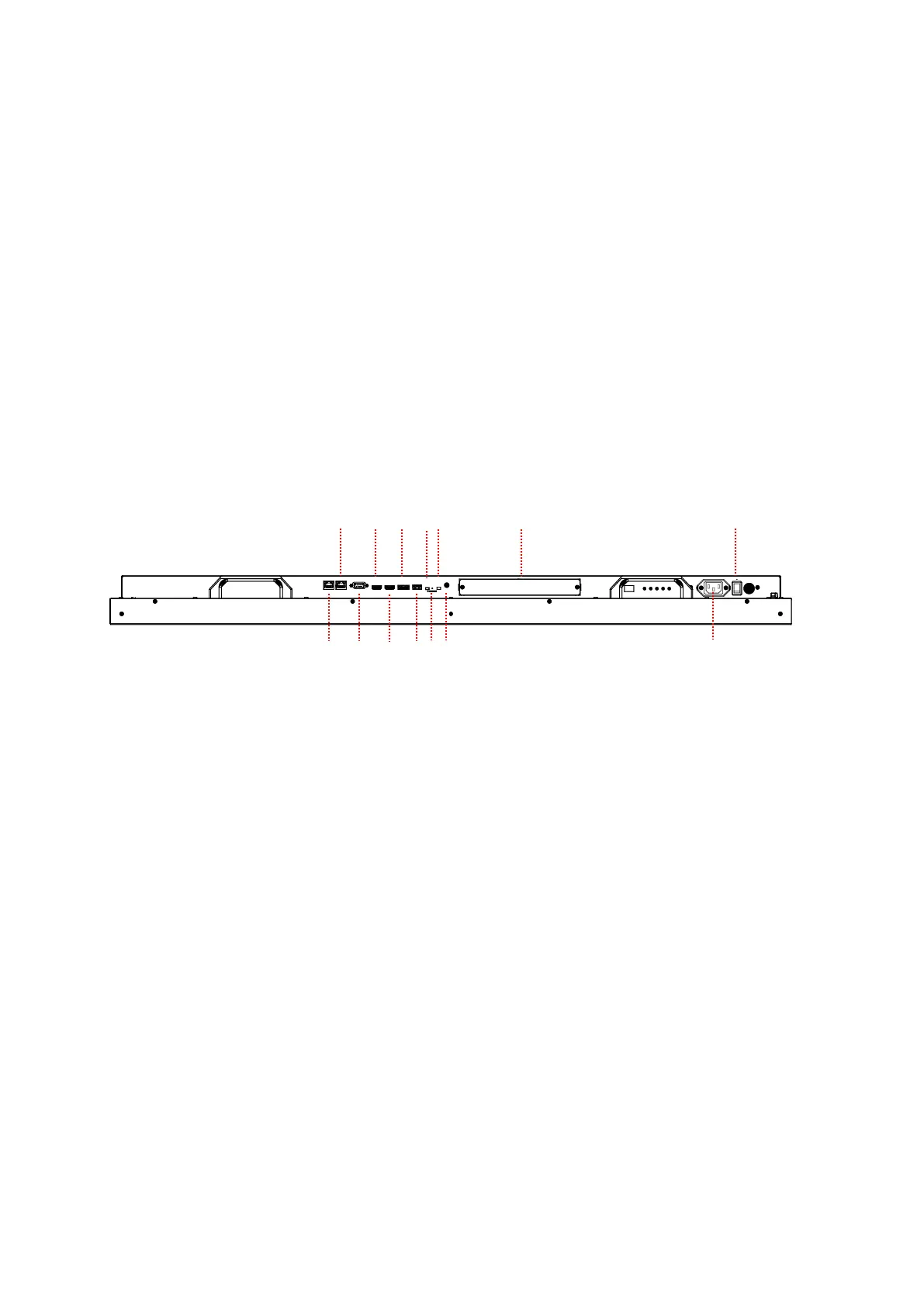

Input / Output Terminals
A. RJ-45 1 (IN): RJ45 network input connection.
B. RJ-45 2 (IN): RJ45 network input connection.
C. RS-232 (IN): RS232C network input connection for remote control from PC.
D. HDMI 1 (IN): Connect the HDMI output of a PC or an AV device via a HDMI cable.
E. HDMI 2 (IN): Connect the HDMI output of a PC or an AV device via a HDMI cable.
F. DP (IN): Connect the DP output of a PC or an AV device via a DP cable.
G. USB 3.0 port: Support for USB flash drive storage, mouse and keyboard.
H. Extension Connector: Extension Connector for optional IR Extension sensor kit (ESK302).
I. Micro SD card: Support for up to 128GB, FAT32 format is supported.
J. Thermal: Extension Connector for optional Extension thermal kit (ETK203).
K. Audio (OUT): Connect the audio signal output from Audio IN jack to an external AV device.
L. SDM Slot: Install SDM, please refer to P.27
M. AC (IN): Connect the supplied power cord to the wall outlet.
N. Power Switch: Press to switch the main power on/off.
A
C
B
E
F
D
I
J
L
K
M
G
H
N
