Dynaudio Sub 6 User Manual

▪ Light grey line: Subwoofer
▪ Brown line: System response
A peak in the response will occur if the filter frequency of the subwoofer is set too high – perhaps with large main
speakers that have an extended bass response. The result will be an excess of mid-bass energy that will sound
unnatural and bloated.

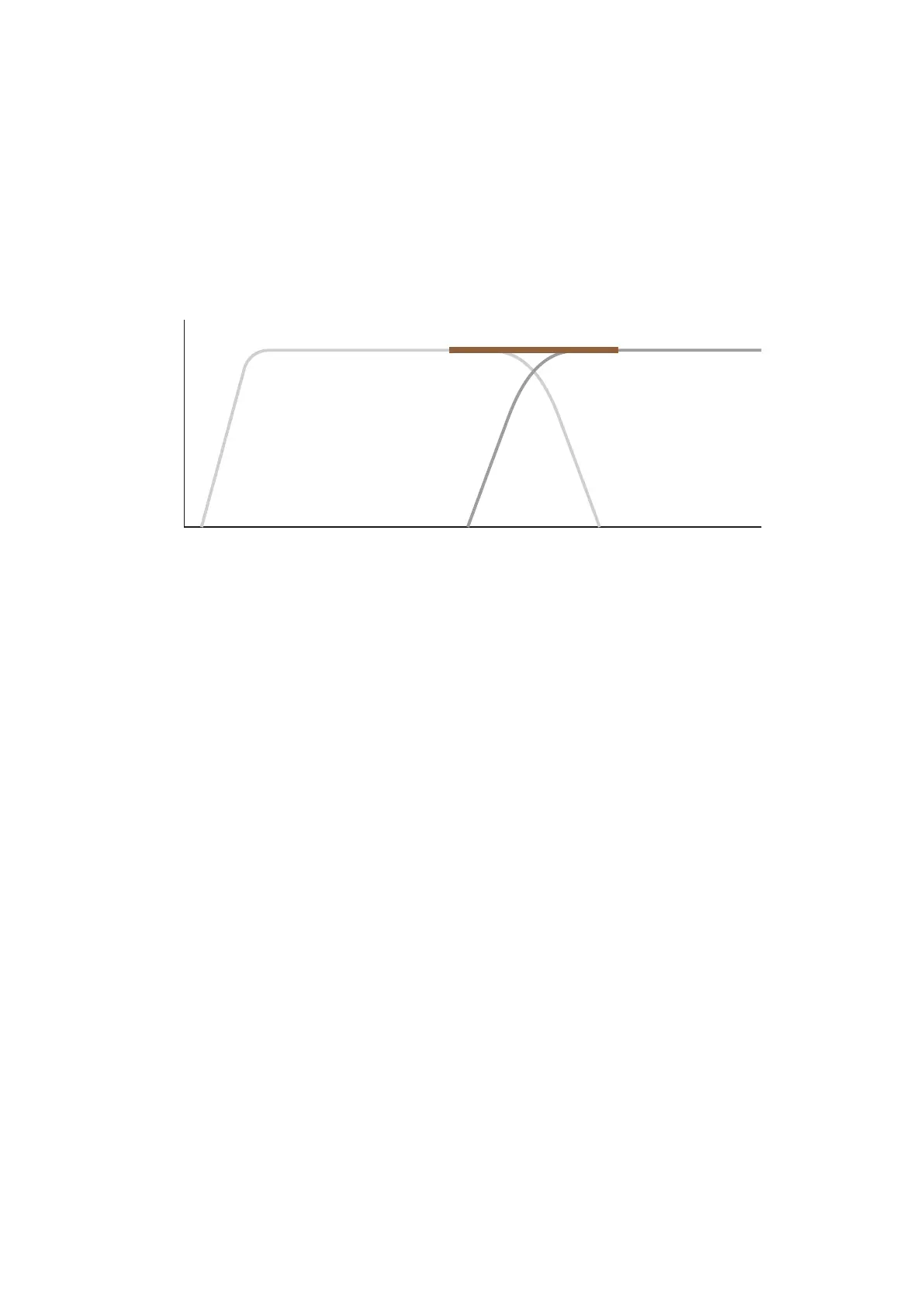

Subwoofer filter frequency set optimally
F >
L >
▪ L: Level
▪ F: Frequency
▪ Dark grey line: Main speakers
▪ Light grey line: Subwoofer
▪ Brown line: System response
The subwoofer and main speakers are well matched. The system frequency response is smooth without a peak
or dip. A well balanced sound will result.
Phase
With the phase settings you can adjust the phase relationship between the subwoofer and main speakers. If
either subwoofer or main speaker are slightly out of phase in relation to the other, it can result in decreased bass
output in the frequency response area where they overlap each other.
Parametric EQ (PEQ)
Provides three bands of low frequency parametric equalisation. Each band oers frequency, gain and Q
parameters. The equalisation is set “bypassed” by default.
Using Parametric Equalisation
The digital signal processing power incorporated in Sub 6 enables three bands of parametric equalisation to be
applied to the input signal. Parametric equalisation can be viewed as finely targeted tone control that is able to
correct specific frequency response anomalies caused by room acoustics.
It should only be used after the subwoofer position has been finalised.
28 Sub 6 User manual

Dynaudio Sub 6 Specifications

General

Subwoofer type	Active subwoofer
Number of subwoofers	2
Subwoofer peak power	500 W
Subwoofer driver diameter	240 mm
Subwoofer frequency range	16 - 230 Hz
On/off switch	Yes
Product color	Black
Speaker enclosure	Closed
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W

Weight and Dimensions

Subwoofer depth	268 mm
Subwoofer width	447 mm
Subwoofer height	300 mm
Subwoofer weight	21500 g
