16-Introduction

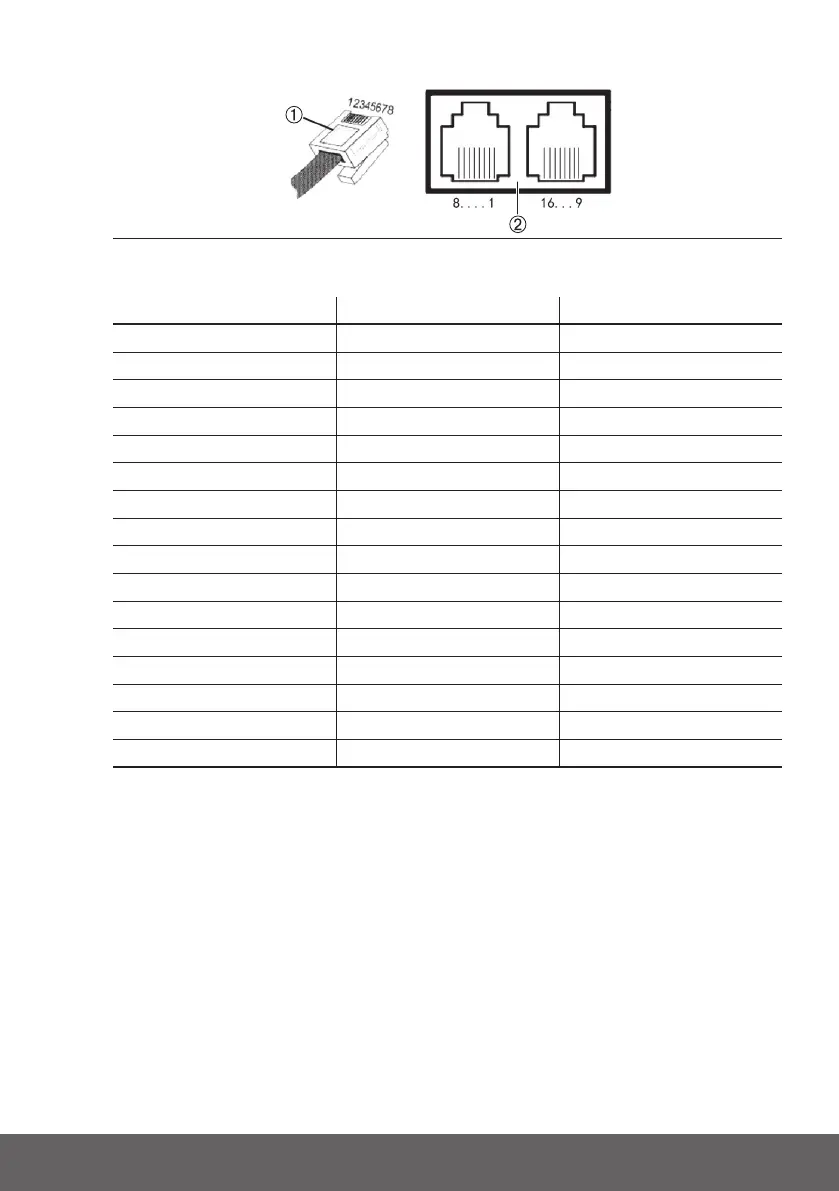

Fig.2.2-CAN/485interfacedenition:Plug(1),Socketofcommunicationport(2)
FOOT POSITION COLOR DEFINITION
PIN1 Orange/white 485A
PIN2 Orange XGND
PIN3 Green/white 485B
PIN4 Blue CANH
PIN5 Blue/white CANL
PIN6 Green Riservato
PIN7 Brown/white XIN
PIN8 Brown Riservato
PIN9 Orange/white Riservato
PIN10 Orange XGND
PIN11 Green/white Riservato
PIN12 Blue CANH
PIN13 Blue/white CANL
PIN14 Green Riservato
PIN15 Brown/white XOUT
PIN16 Brown Riservato
Tab.2.3-PinDenition
