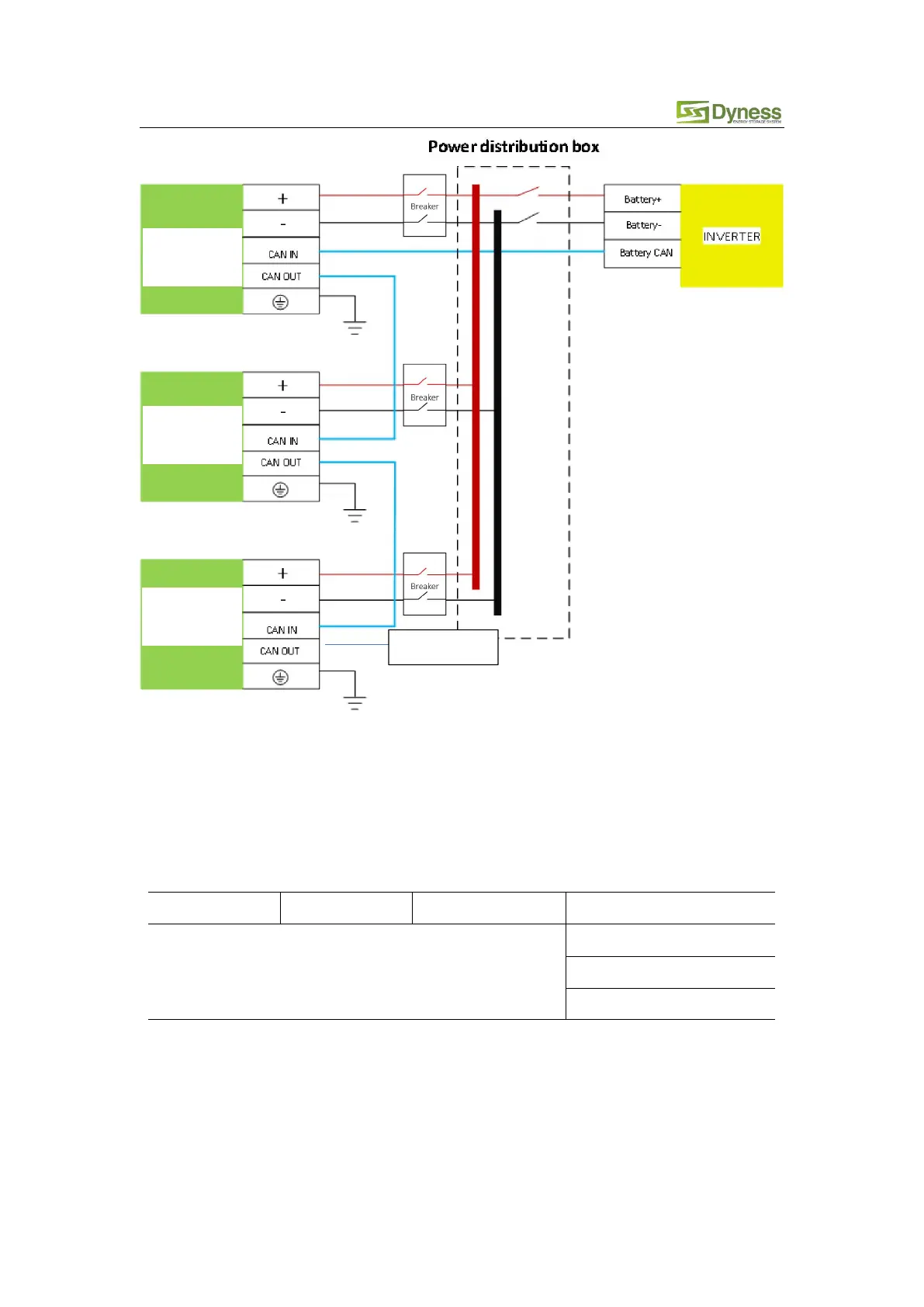

3.2.4 Battery module DIP switch definition and description
Table 3-4 DIP switch Definition
DIP switch position (master communication protocol and baud rate selection)
#1
#2
#3
#4
Define different protocols
；
Distinguish between master and slave
Baud rate selection
OFF：CAN: 500K,485: 9600
ON
：
CAN: 250K,485: 115200
CAN resistor
Powerbox
Pro
Powerbox
Pro
Powerbox
Pro
