3.2.3 Electrical installation
Before connecting the power cables, using multimeter to measure cable continuity, short
circuit, confirm positive and negative, and accurately mark the cable labels.
Measuring method:
Power cable check: select the buzzer mode of multimeter and detect the both ends of the
same color cable. If the buzzer calls, it means the cable is in good condition.
Short circuit judgment: choose multimeter resistor file, probe the same end of positive and
negative pole, if the resistor shows infinity, means that the cable is available.
After visual testing of power line is connection, the positive and negative poles of the
battery shall be connected respectively to the positive and negative poles of the opposite
terminal.
1) Connect the battery box to the ground cable

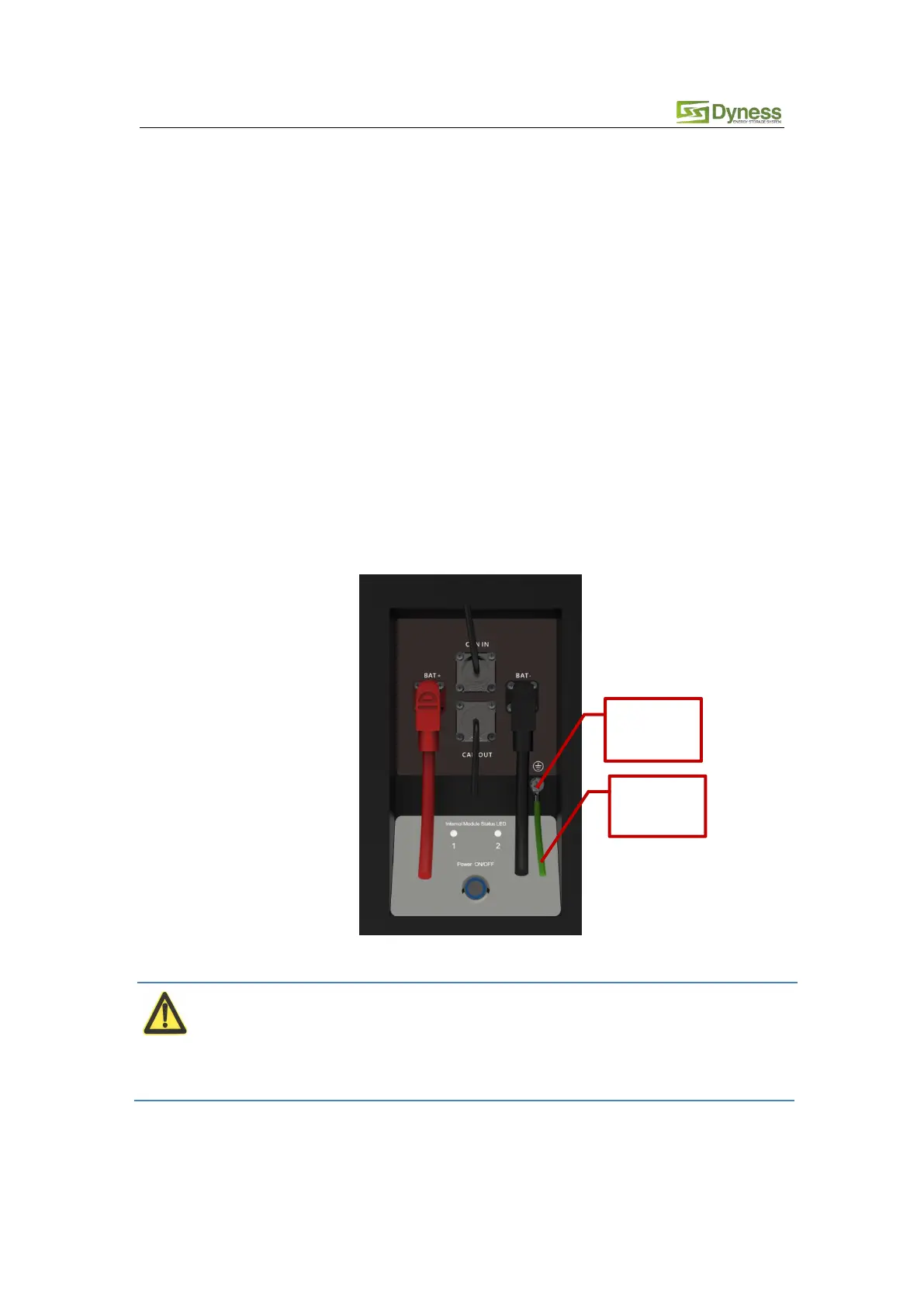

Customer needs to prepare a M6 OT terminals and ground cables. Ground the battery shell as
shown below. The sectional area of the grounding cable shall be at least 6mm2 and the bolt
locking torque is 6NM.
If there is any question during installation, please contact your dealer to avoid damage to the
equipment.
Statement
：
For Australian market, installations should be conducted in accordance with
AS/NZS 3000 and AS/NZS 5139”.
