Service manual
Fitting notes
11

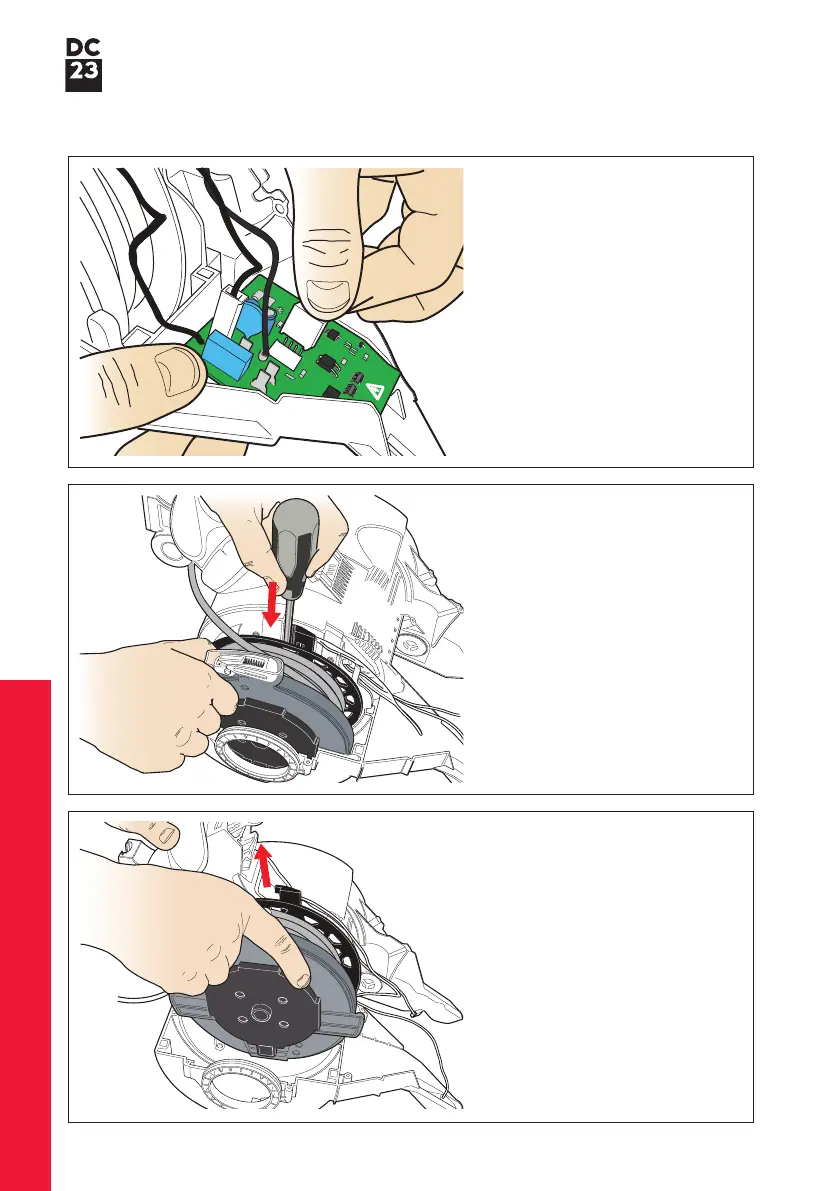

16 Remove the cable rewind
assembly from the main body.
15 Slide a large flat bladed
screwdriver down the channel
between the cable rewind
assembly and the main chassis to
activate the cable rewind release
clip.
14 If the PCB assembly needs
replacing, carefully detach all
wires from it and remove it from
the product.
Motorhead variant only
