Dyson DC 23 Service Manual

Parts recognition
Service manual
66
Screw
Internal Hose Assy
Floor Tool
Bumper Strip
Ropeseal
Brush Housing
Ropeseal
Brushbar Assy
Soleplate
Wheel
Screw
End Cap
Assy Right
Washer
Glamour Cap
E-Clip
Outer Wheel Hub
Axle
Gimble Cover
Brushbar Actuator
Spring
Screw
Stow Microswitch Cam
Stow Neck Cover
Stow Wheel
Brushbar Motor
Screw
Brushbar Microswitch
Brushbar Motor Mount Front
Brushbar Motor Cover Lower
Screw
End Cap Assy Left
Soleplate Assy
Power Floor Tool Assy
Axle
Brushbar Motor
End Mount
Axle

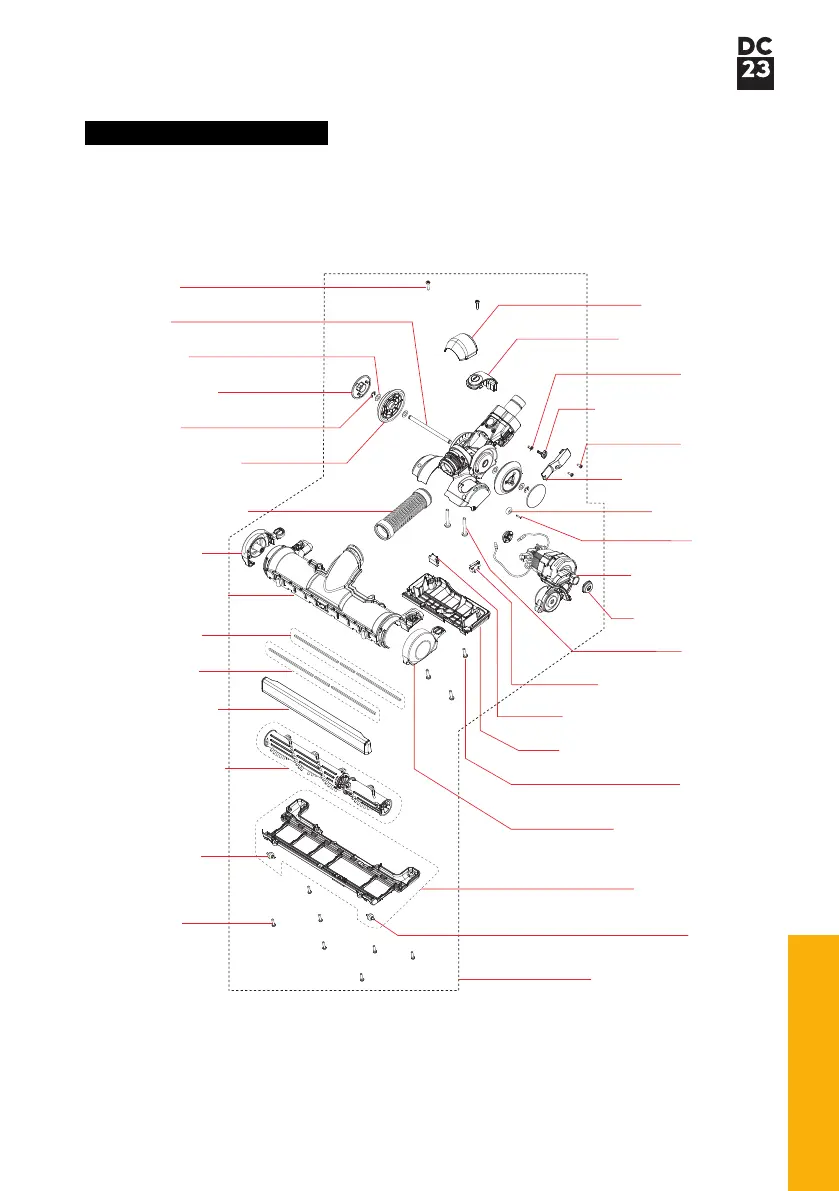

Power floor tool assembly

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
