Dyson DC 23 Service Manual

Service manual
Fitting notes

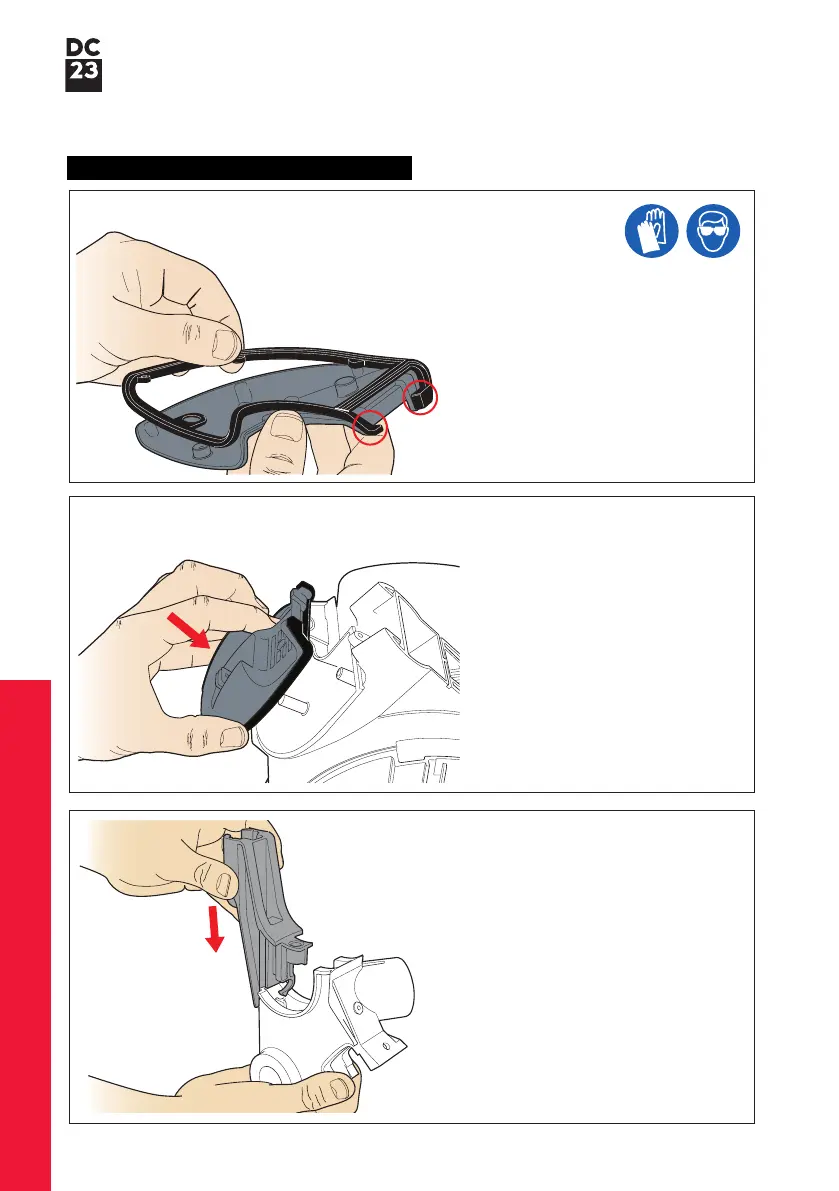

90 Locate the duct cover seal onto
the duct cover. One spot of glue
should be applied to each side of
the duct cover too hold the ends
of the duct cover seal in place.
Main chassis replacement - assemble
91 Fit the duct cover and seal onto
the main chassis. Ensure the
seal is correctly seated around
all edges of the cover and main
chassis.
Fit the three screws.
92 If previously removed slide the
park yoke into the tool storage.
Fit the screw.
37

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
