Dyson DC 23 Service Manual

Fitting notes
Service manual
22

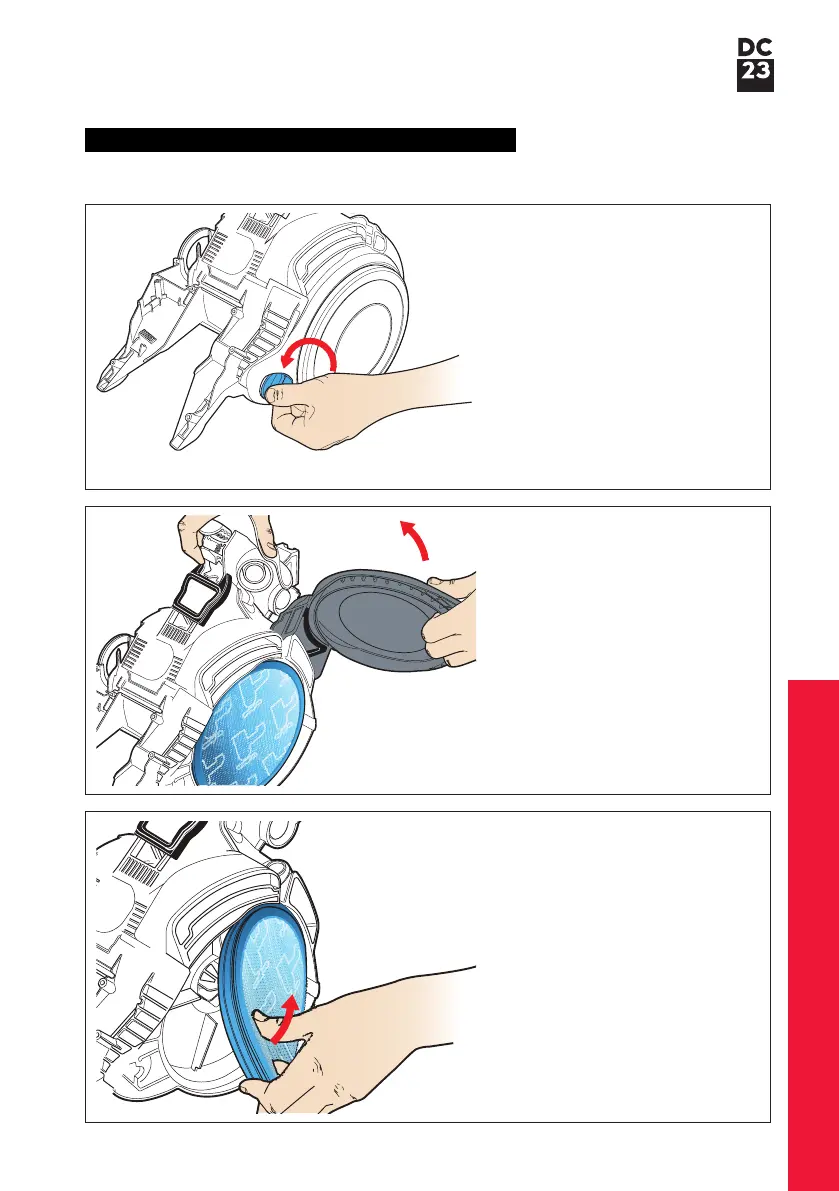

47 Unlock the pre-filter cover
fastener.
48 Open the pre-filter cover
assembly. Should it need replacing
it can be pulled firmly off the
hinge points on the rear of the
product.
49 Remove the pre-filter assembly.
Motor bucket assembly replacement - removal
Before continuing the following parts should be removed as previously shown:
Cable rewind and PCB assembly (pages 6-13)

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
