Service manual

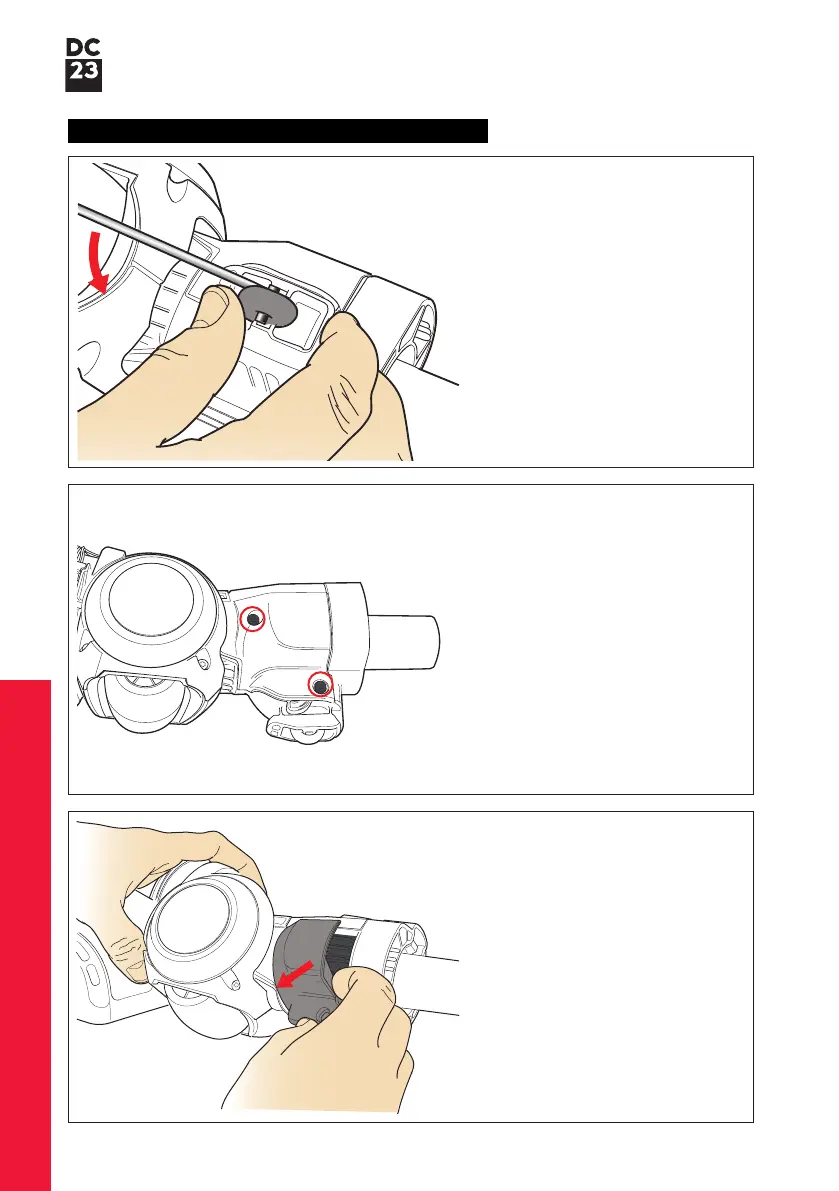

Fitting notes
111 The stow wheel or axle can be
replaced by prising out the stow
using a thin, flat bladed
screwdriver.
To fit, push both parts firmly into
the stow.
112 To replace the stow neck cover,
stow microswitch cam or spring
remove the two short screws in
the cover.
113 Firmly pull from the rear of the
cover off the side of the neck.
Sub-assemblies - Power floor tool - dismantle
45
