Service manual
dyson stowaway
The full-sized cylinder with hygienic bin emptying
Sits on the stairs
Hygienic bin emptying
Lower profile contact head
Doesnʼt lose suction and captures
more microscopic dust
Combines Cyclone technology
with a core separator an extra
cyclonic stage between the outer and
inner cyclones to separate particles
as small as 0.5 micron from the
airflow.
TM
02
Electrical safety testing
Ensure that at all times during the repair and testing of products
that customers, pets, children and you are not exposed to any
Live electrical supply.
The following tests must be performed prior
to and upon completion of all repairs to
Dyson floorcare products and before any
functional checks. You must ensure that
a full visual inspection of the product is
completed prior to repair.
This is vital to avoid any possibility of
personal injury to the end user.

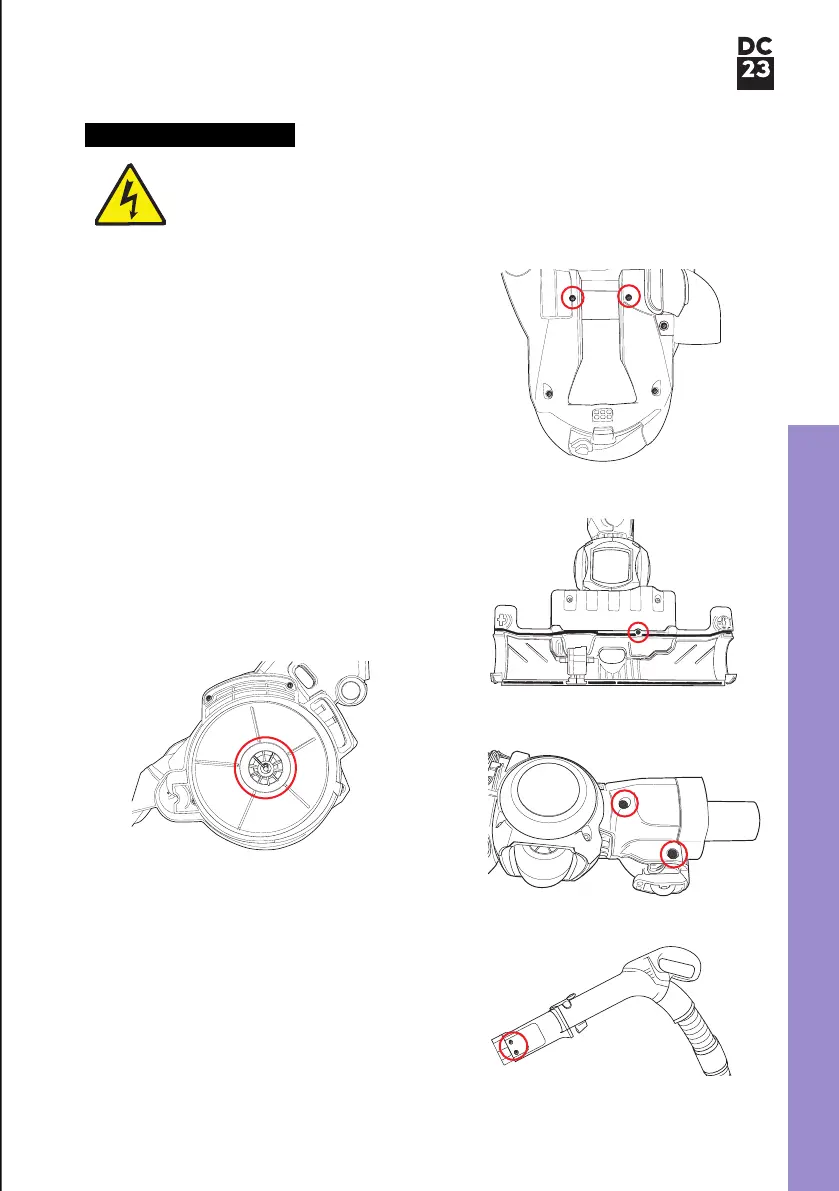

Insulation test points:
All variants
Motorhead variant
Test directly onto the motor through the
grille in the pre-filter housing.
Test the two screws in the wand cuff
cover.
Test the two screws in the stow neck
cover.
Test the front screw in the brushbar
motor cover lower.
Test the two screws highlighted in
the upper chassis.
The Seaward Primetest 200 (or equivalent) should
be used to test the electrical insulation of a Class
11 appliance; it indicates any electrical leakage.
