Dyson DC 23 Service Manual

Fitting notes
Service manual
40

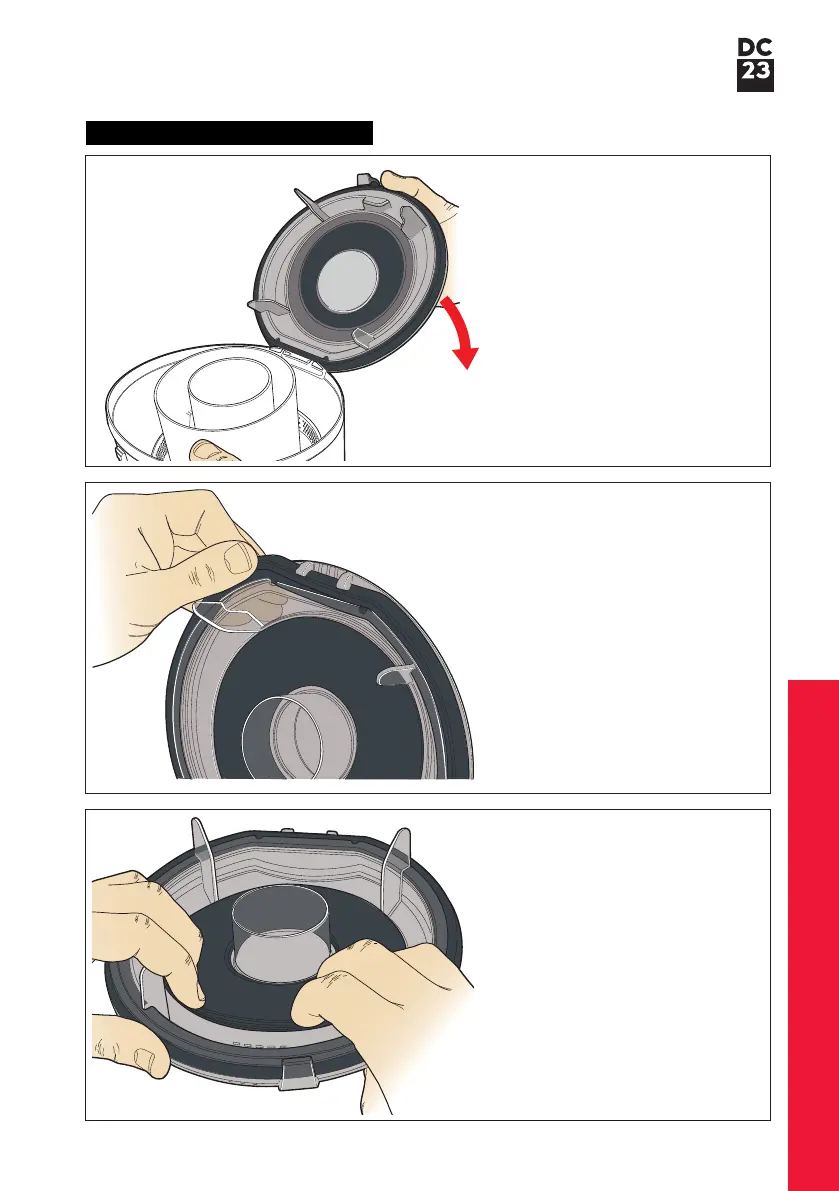

99 Firmly pull back the bin base
assembly to remove from the
bin assembly.
100 The bin base seal can be
replaced by firmly pulling it off
the bin base assembly.
When fitting ensure the seal is
adequately seated around all
edges and details.
Sub-assemblies - Bin assembly
101 If the FDC/IDC needs replacing
pull it away from the bin base.
When replacing ensure it is
firmly pushed in and seated
correctly.

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
