Dyson DC 23 Service Manual

Fitting notes
Service manual
42

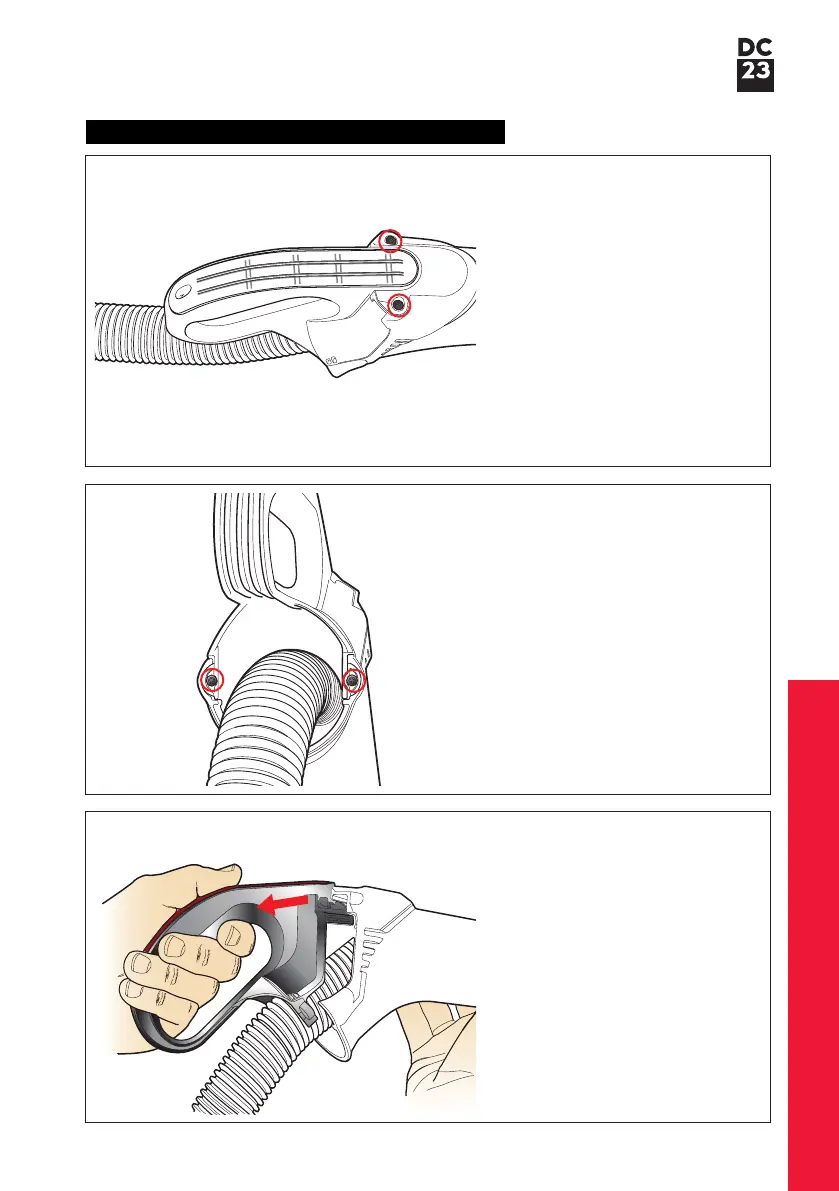

103 To remove the wand handle from
the power wand hose assembly,
undo the two screws on the top
of the wand.
105 Slide the wand handle out of the
rear of the power wand hose
assembly.
Fit in reverse.
104 Undo the two Torx T-8 screws on
the rear of the wand handle.
Sub-assemblies - Power wand hose assembly

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
