Dyson DC 23 Service Manual

Service manual
Fitting notes

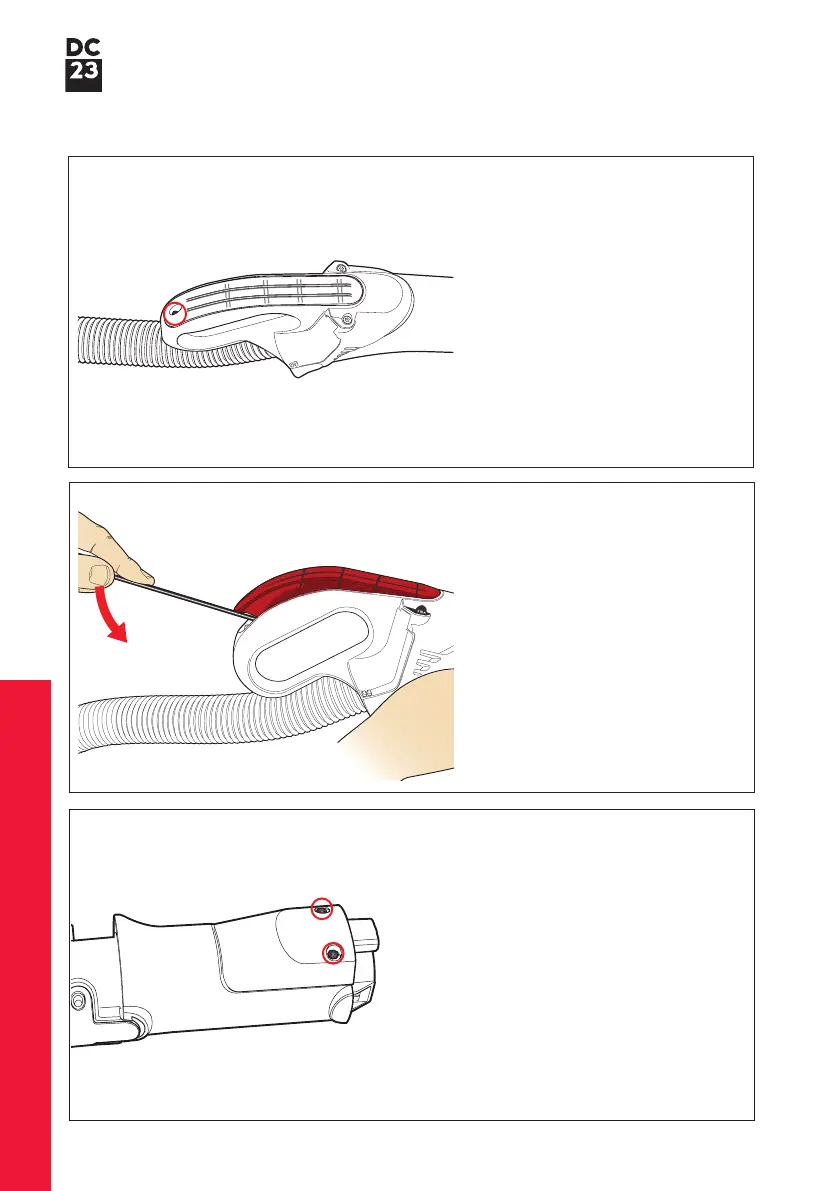

108 The wand cuff cover can be
replaced if necessary by undoing
the two screws shown and lifting
off the cover.
107 With the screw removed carefully
prise out from the rear using a
thin, flat bladed screwdriver.
Fit in reverse.
106 The wand handle cover can be
replaced by removing the Torx
T-8 screw in the rear of the cover.
43

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
