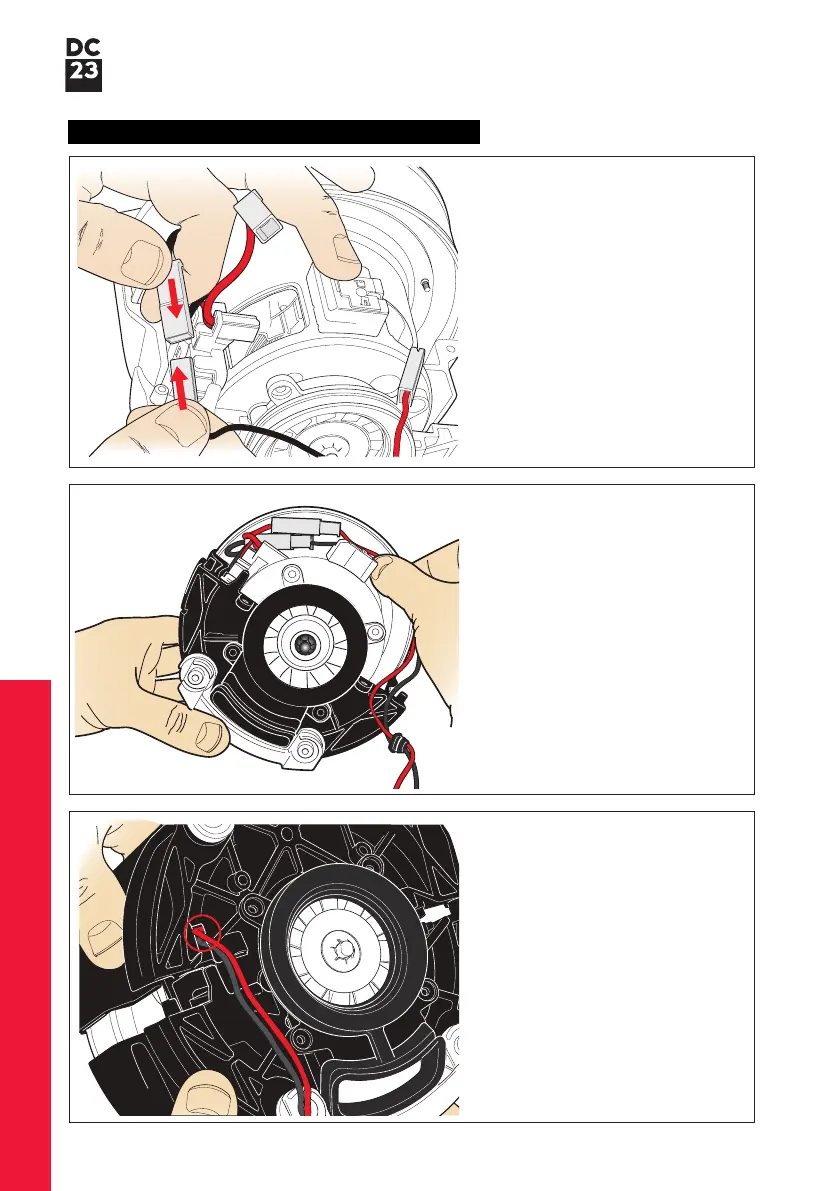

Service manual
Fitting notes
27
63 Locate the cable clips neatly within
the fancase.
62 Connect the motor wiring
assembly to the motor wires.
Motor Bucket assembly replacement - fitting
64 Fit the upper half of the motor
bucket over the motor ensuring
the motor wires are located
within the slot. Push the two
halves together ensuring no wires
are trapped and all edges are
adequately seated.
