Dyson DC 23 Service Manual

Fitting notes
Service manual
26

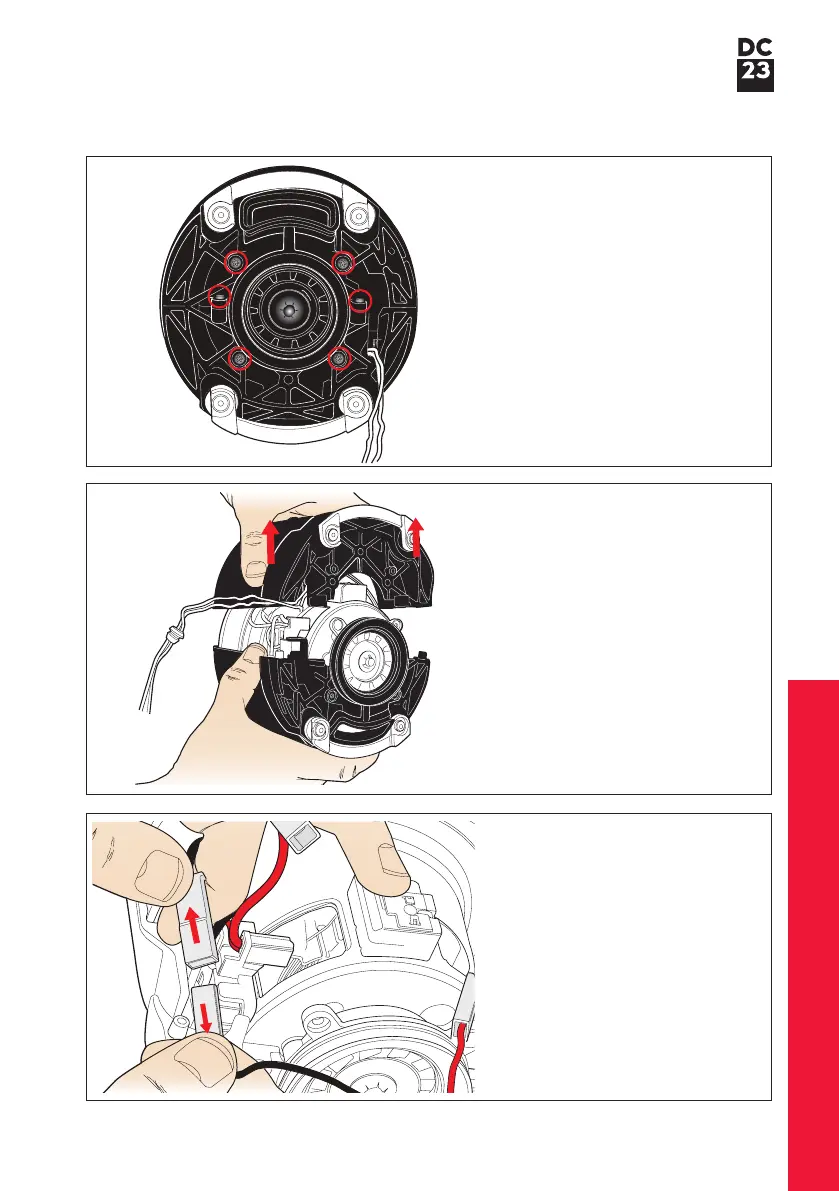

61 Separate the motor wires.*
59 Remove the six screws from the
side of the motor bucket. Unclip
the motor wires from the side of
the bucket.*
60 Separate the two halves of the
motor bucket.*
* Only necessary if replacing bleed valve assembly.
All parts are offered together within the motor bucket assembly

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
