Dyson DC 23 Service Manual

Fitting notes
Service manual
32

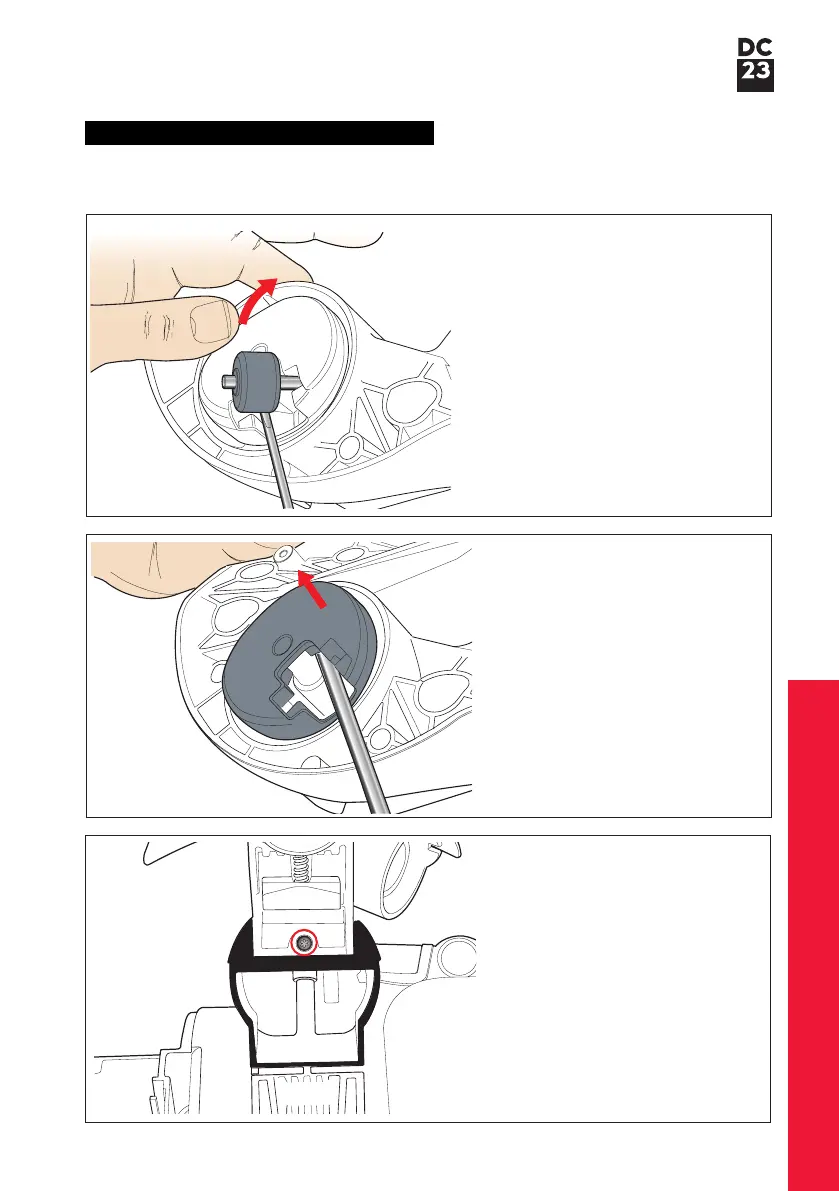

77 Prise the castor wheel and axle out
of the castor body.
Main chassis replacement - dismantle
78 Prise the castor body off the base
of the chassis.
79 Remove the screw in front of the
cyclone release catch.
Before continuing the following parts should be removed as previously shown:
Cable rewind and PCB assembly (pages 6-13)
Motor bucket assembly (pages 22-26)

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
