Service manual
Fitting notes

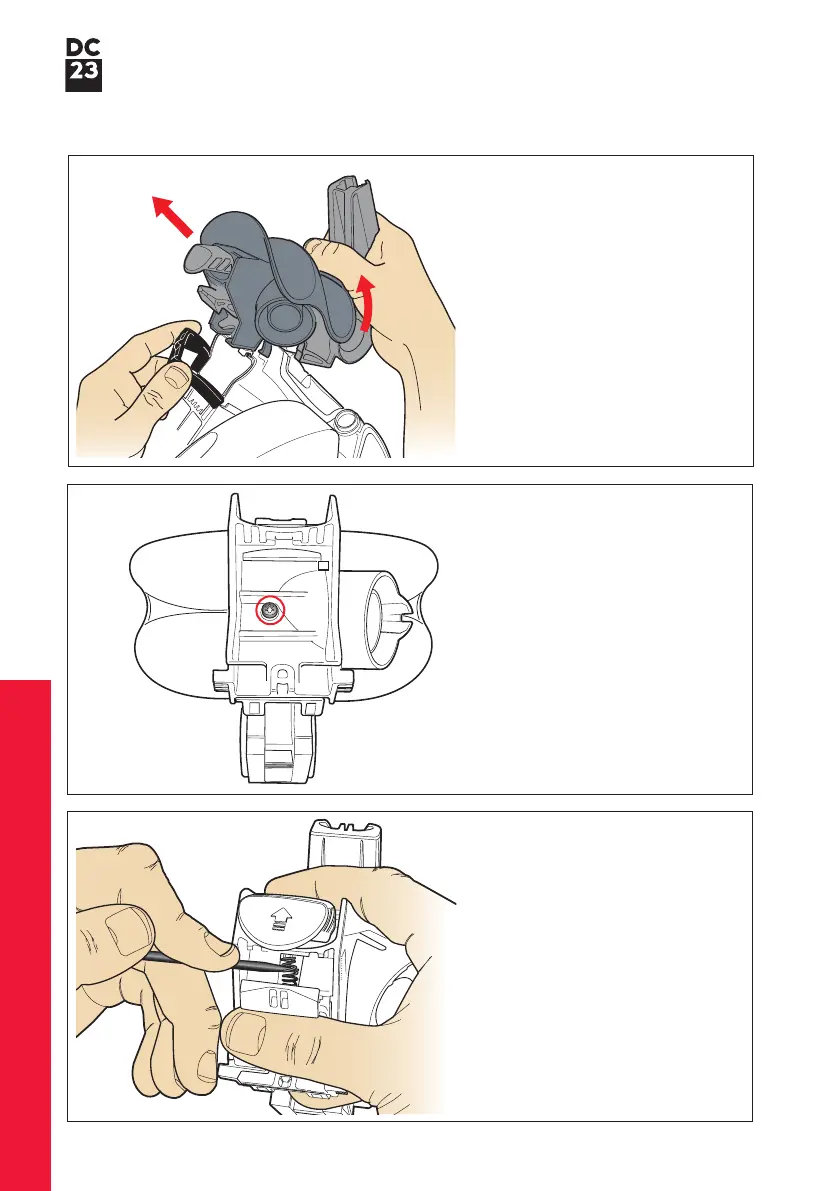

80 Release the top edge of the
exhaust seal from the main
chassis. Release the tool storage
and all parts attached to it
from the main chassis.
81 Remove the screw and rear hose
guide from the tool storage.*
82 Carefully remove the cyclone
release catch spring.*
33
*Only necessary if replacing any of the components attached to the tool storage.
