Dyson DC 23 Service Manual

Service manual
Fitting notes

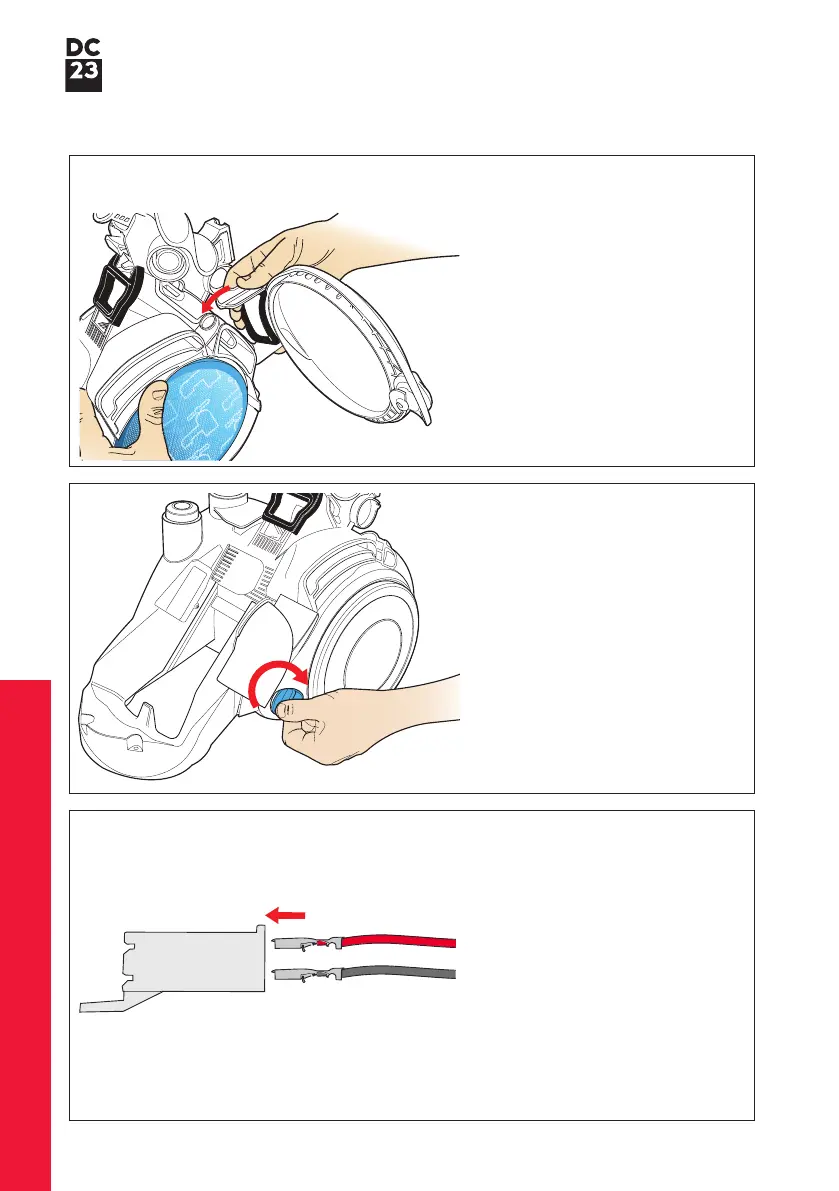

74 If previously removed clip the
pre-filter cover onto the hinge
points on the side of the product.
75 Twist and lock the pre-filter cover
fastener.
76 Attach the connector clip onto the
ends of the motor wiring assembly
(Motorhead models only).
Important: the wires must be
fitted in the orientation shown.
After fitting the motor the following parts should be fitted as previously shown:
Cable rewind and PCB assembly (pages 14-21)
31

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
