Dyson DC 23 - Page 24

Service manual
Fitting notes
21

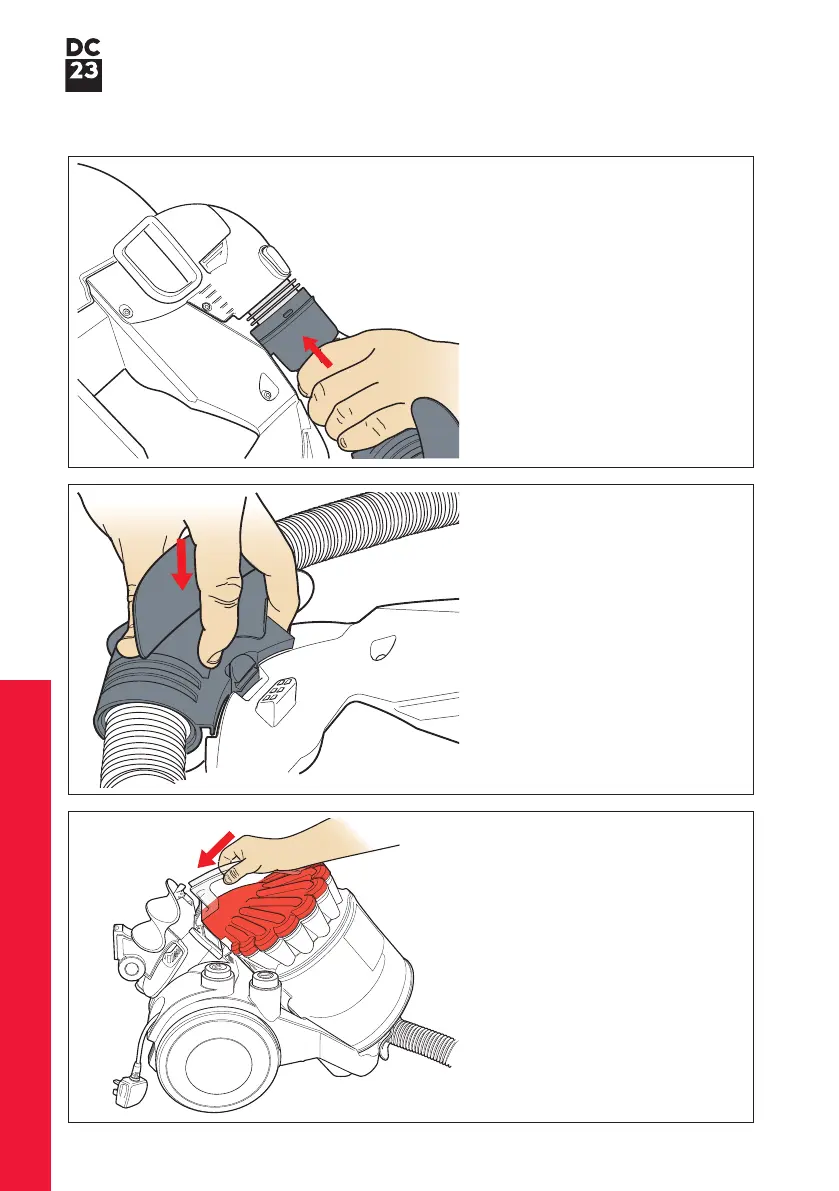

46 Replace the cyclone and the bin
assemblies onto the product.
44 Slide the hose into the cyclone
inlet.
45 Clip the hose retainer onto the
front of the product.
