Dyson DC 23 Service Manual

Fitting notes
Service manual
38

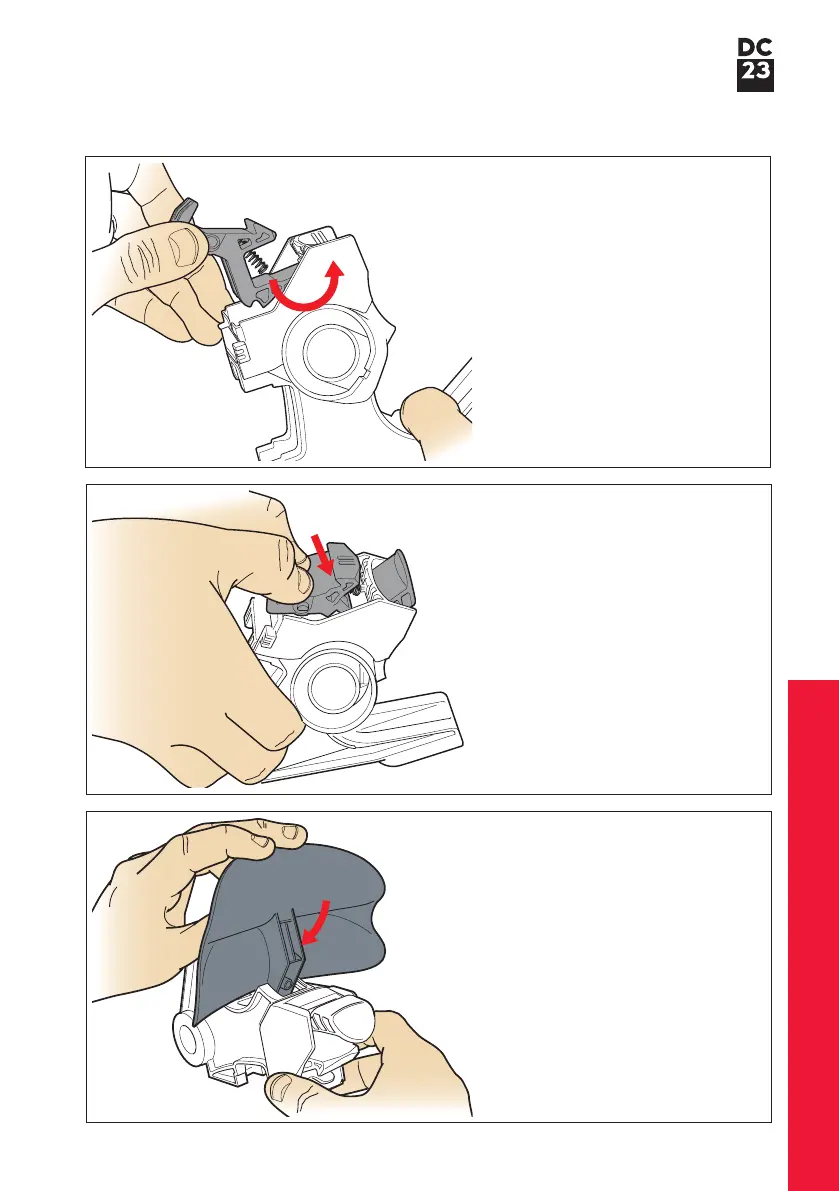

94 Once located push the catch
firmly into the housing.
95 Slide the rear hose guide into the
tool storage.
Fit the screw.
93 Locate the cyclone release catch
housing onto the front of the tool
storage.
Fit the screw.
Locate the spring onto the cyclone
release catch. Insert the cyclone
release catch into the housing
ensuring the spring locates onto
the cruciform in the cyclone
release catch housing.

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
