Service manual
Fitting notes
13

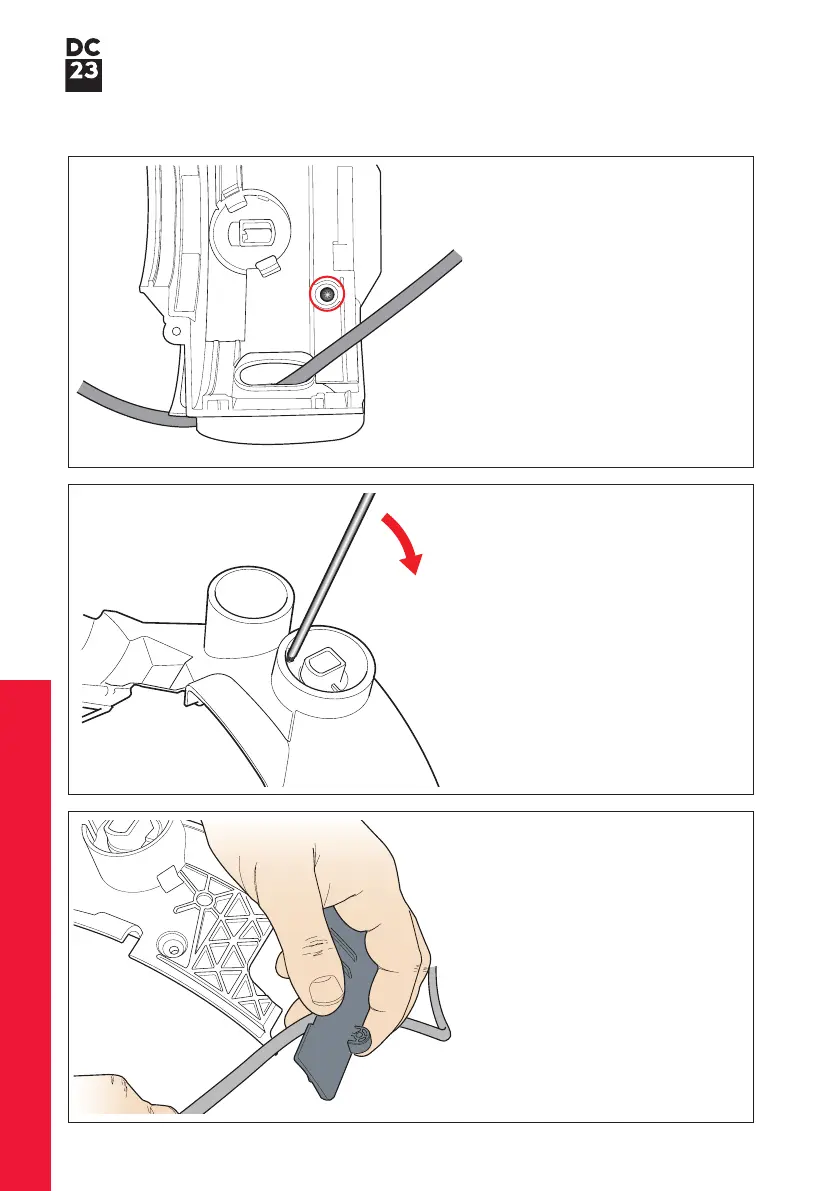

20 Remove the cable guard screw.
21 Insert a Torx T15 screwdriver into
the detail at the bottom of the
cable rewind actuator housing
and lever down to release the
cable guard from the upper
chassis.
22 Release the cable from the upper
chassis.
