Dyson DC 23 Service Manual

Fitting notes
Service manual
24

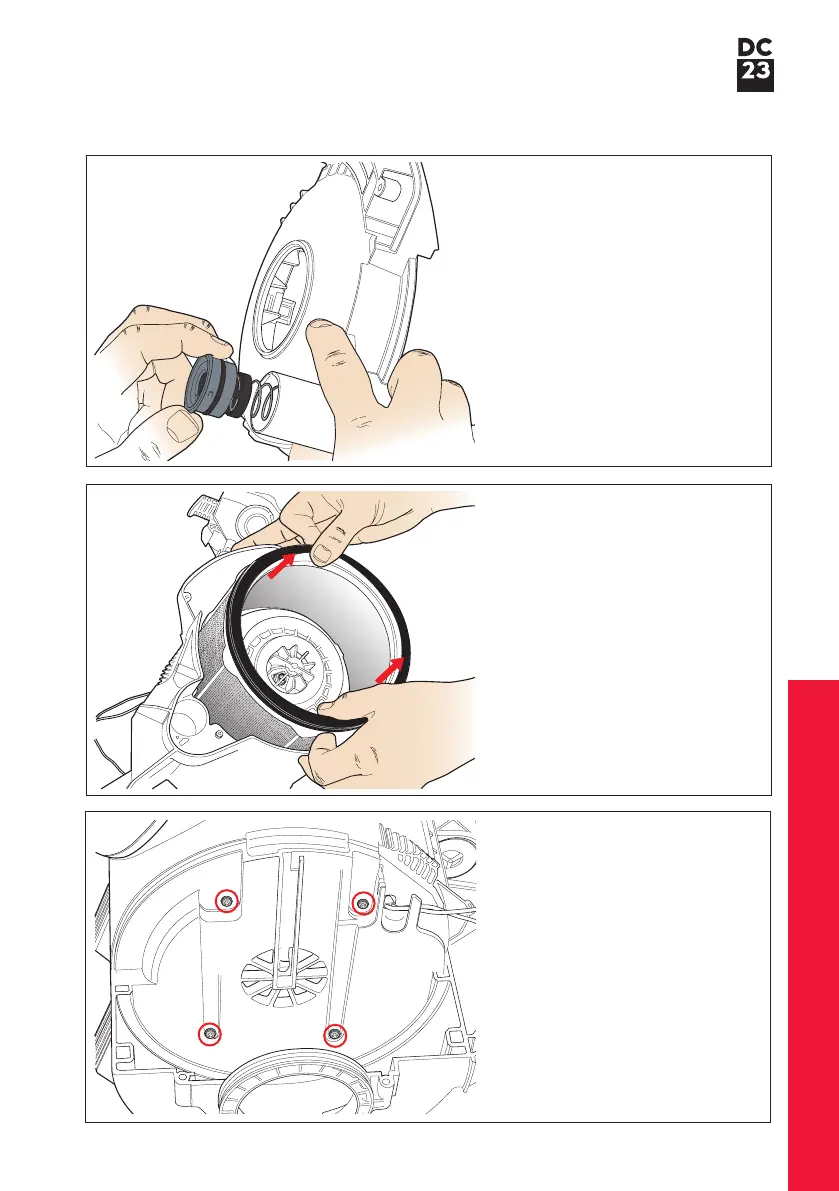

55 Remove the four Torx T-10 screws
from the side of the cable rewind
assembly.
Note: it will be necessary to
access two of the screws through
holes in the side of the main
chassis.
54 Remove the post filter assembly.
53 With the bleed valve cap
unlocked all parts can be pulled
away from the pre-filter housing.
All parts can be fitted in reverse.*
* Only necessary if replacing bleed valve assembly.

Dyson DC 23 Specifications

General

Model	DC23
Power	12 Amps
Type	Upright
Cyclone Technology	Root Cyclone Technology
Filtration	HEPA filter
