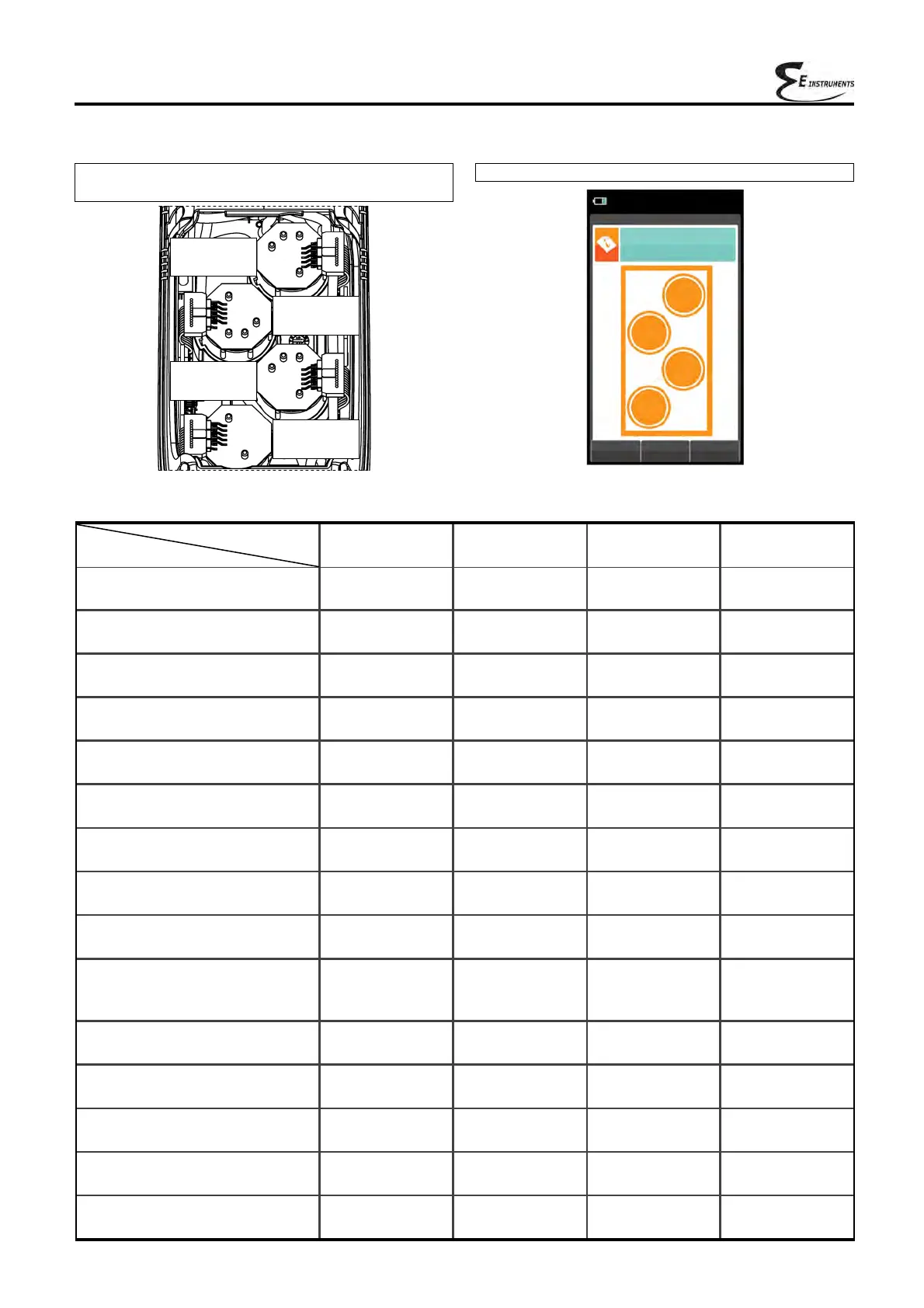

14.0 SENSORS
14.1 Sensors arrangement
GRAPHICAL DISPLAY OF ARRANGEMENT
S1 S2 S3 S4
Flex-Sensor O 2
Cod. AACSE11



Flex-Sensor O 2
Cod. AACSE15



Flex-Sensor CO+H 2
Cod. AACSE12



Flex-Sensor CO high (H 2 Comp)
Cod. AACSE20


 

 


Flex-Sensor NO
Cod. AACSE10



Flex-Sensor NO 2
Cod. AACSE14


 

 


Flex-Sensor SO 2
Cod. AACSE13


 

 


Flex-Sensor CO 100,000 ppm
Cod. AACSE17


 

 


Flex-Sensor CO 20,000 ppm
Cod. AACSE18


 

 


FLEX-Sensor CxHy
0-5.00% vol. referred to CH4
Cod. AACSE23



Flex-Sensor CO+H 2 low range
Cod. AACSE24



Flex-Sensor NO low range
Cod. AACSE25



Flex-Sensor NO 2 low range
Cod. AACSE26


 

 


Flex-Sensor SO 2 low range
Cod. AACSE28


 

 


Flex-Sensor CO 2
Cod. AACSE29


 


CODE
POSITION
14.2 Sensor types and relevant positioning
07/08/14
10:00
Information
Sensors
Esc
CO
O
2
NO
SO
2
S1
S2
S3
S4
SENSOR ARRANGEMENT INSIDE
THE SENSOR COMPARTMENT
POSITION
S1
POSITION
S2
POSITION
S3
POSITION
S4
