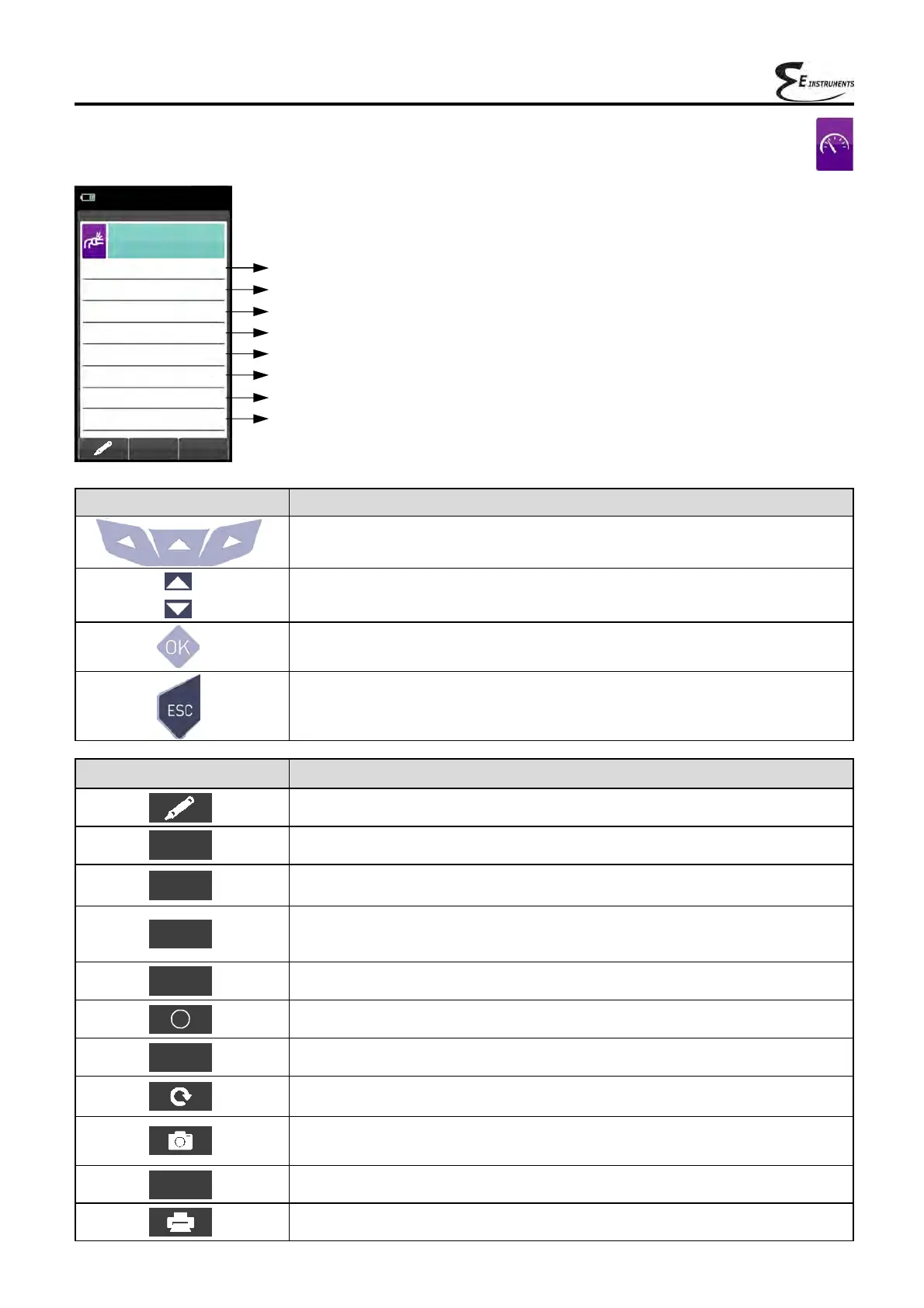

12.9 EXISTING PIPING: UNI 11137 STANDARD
07/08/14
10:00
Existing piping
Configuration
Stabilization
min
1
Print
auto
Fuel
L.P.G.
Test gas
Air
Type test
complete
Volume
dm
3
18.0
Measure volume
Calculate volume
CONTEXT KEY FUNCTION
Enters the modification mode for the selected parameter.
Goes to the next phase of the tightness test.
Performs pressure zeroing.
Saves, in the memory selected in the "Select Memory" menu, the data
acquired.
Starts printing the ticket.
Interrupts the current phase.
- Repeats the tightness test.
- In "Measure Volume" it repeats the volume measuring procedure.
The tightness test has been saved.
In "Calculate Volume" it corrects any errors or modifies the current
calculation by subtracting one or more sections of piping.
In "Calculate Volume" it adds up one or more sections of piping.
- Confirms the element entered.
- in "Measure Volume" it starts the volume measuring procedure.
- in "Calculate Volume" it zeroes the volume acquired.
KEY FUNCTION
Activate the context keys shown on the display.
Selects line; the selected line is evidenced in red.
In edit mode, it sets the desired value.
Activates the context key located in the left side of the display.
Returns to the previous screen.
When in modify mode cancels the modification just made.
O
o
oo
o
V+
V-
OK
Duration of the stabilization phase that can be set between 1 and 240 minutes.
Gas used in the test: Air - fuel.
Type of test to perform: preliminary (system volume <18.0dm
3
) - Complete.
System volume, which can be set if known.
Measures the volume of the system.
Calculates the volume on the basis of the characteristics of the piping.
Fuel used in the system: L.P.G. - Natural gas.
Printing mode, that can be set as manual or automatic.
