E-Z-GO MPT 800 Technician's Repair And Service Manual

ELECTRONIC SPEED CONTROL (48V)
Page F-33
Repair and Service Manual
Read all of Section B and this section before attempting any procedure. Pay particular attention to all Notes, Cautions and Warnings

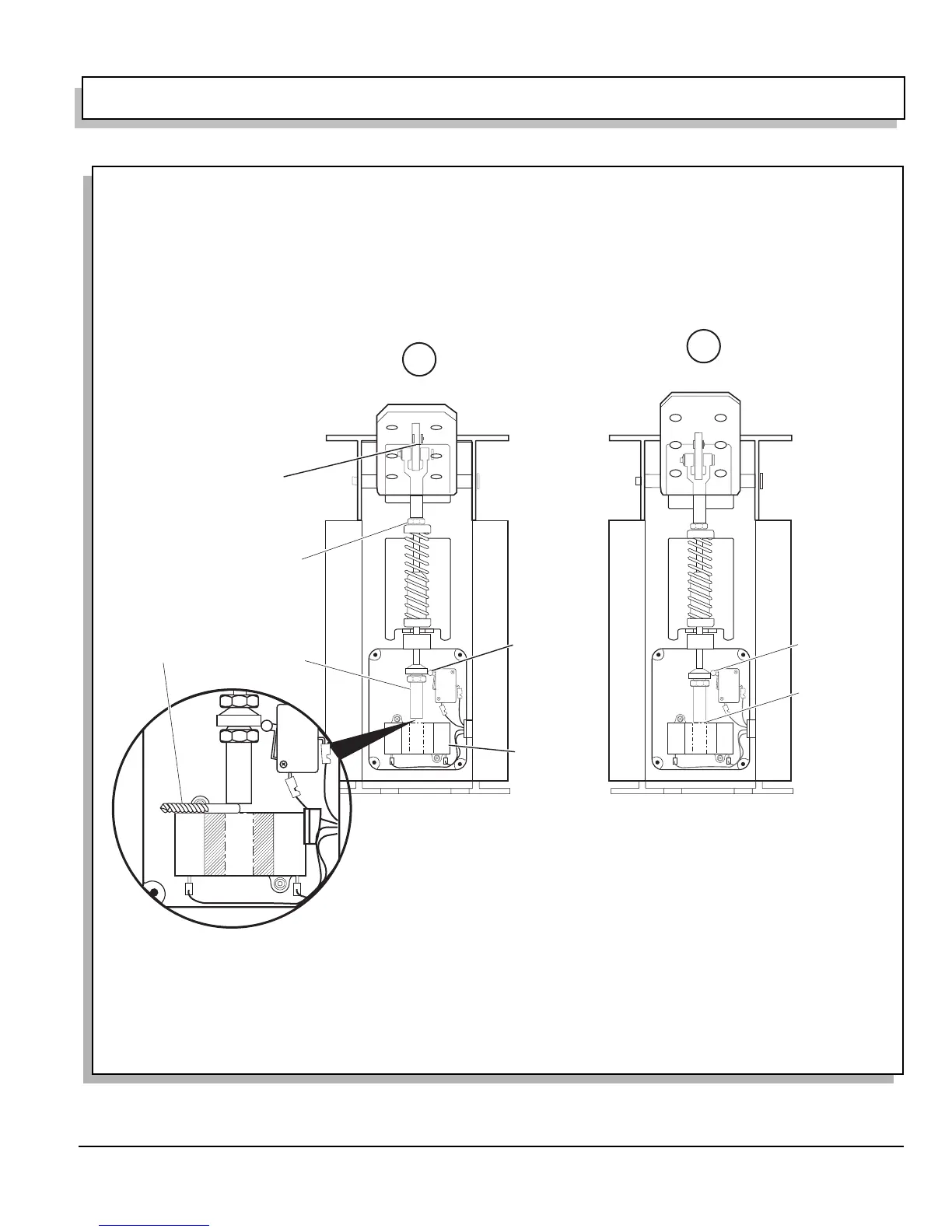

Fig. 15 ITS Adjustment (Sheet 1 of 2)
Use 7/32" drill
to measure gap
between plunger
and 'ITS'
Micro switch
disengaged
Micro switch
disengaged
Pedal bracket
rest against front
of pedal frame
opening
1
2
'ITS'
Plunger
Plunger has
not entered
'ITS'
Lock Nut
PEDAL UP
To adjust plunger:
- Loosen lock nut
- Rotate plunger until
desired dimension Is
achieved
- Tighten Lock Nut
PEDAL PRE-TRAVEL
