Eagle 2000 Series - Page 33

- 33 -
5.3 Turntable Home Switch

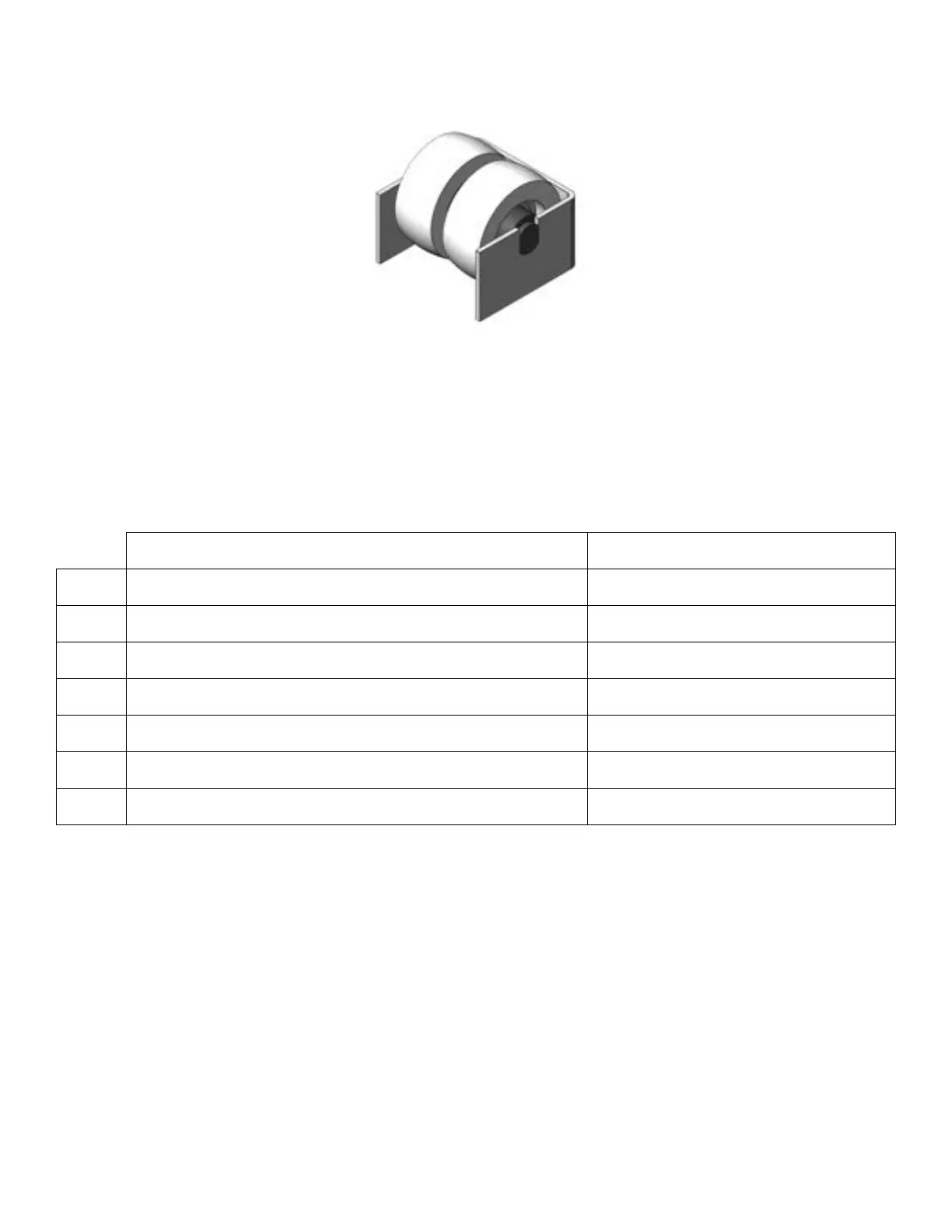

Fig. 4-4
 Remove all 24 idler wheels supporting the turntable rotation if there is excessive bearing play. If
the diameter is less than 53mm or there is abnormal noise during operation, replace the bad
contact rollers. (See Fig. 4-4)
Name
Part Number
1
Shrink Ring
FG-03A-20
2
Core Holder Washer
FG-03A-21
3
Core Holder
FG-03A-19
4
Roll Holder
FG-03A-18
5
Film Tension Switch
FG-03-11
6
Idler Wheel
FG-01A-20
7
Chain
12A
