27

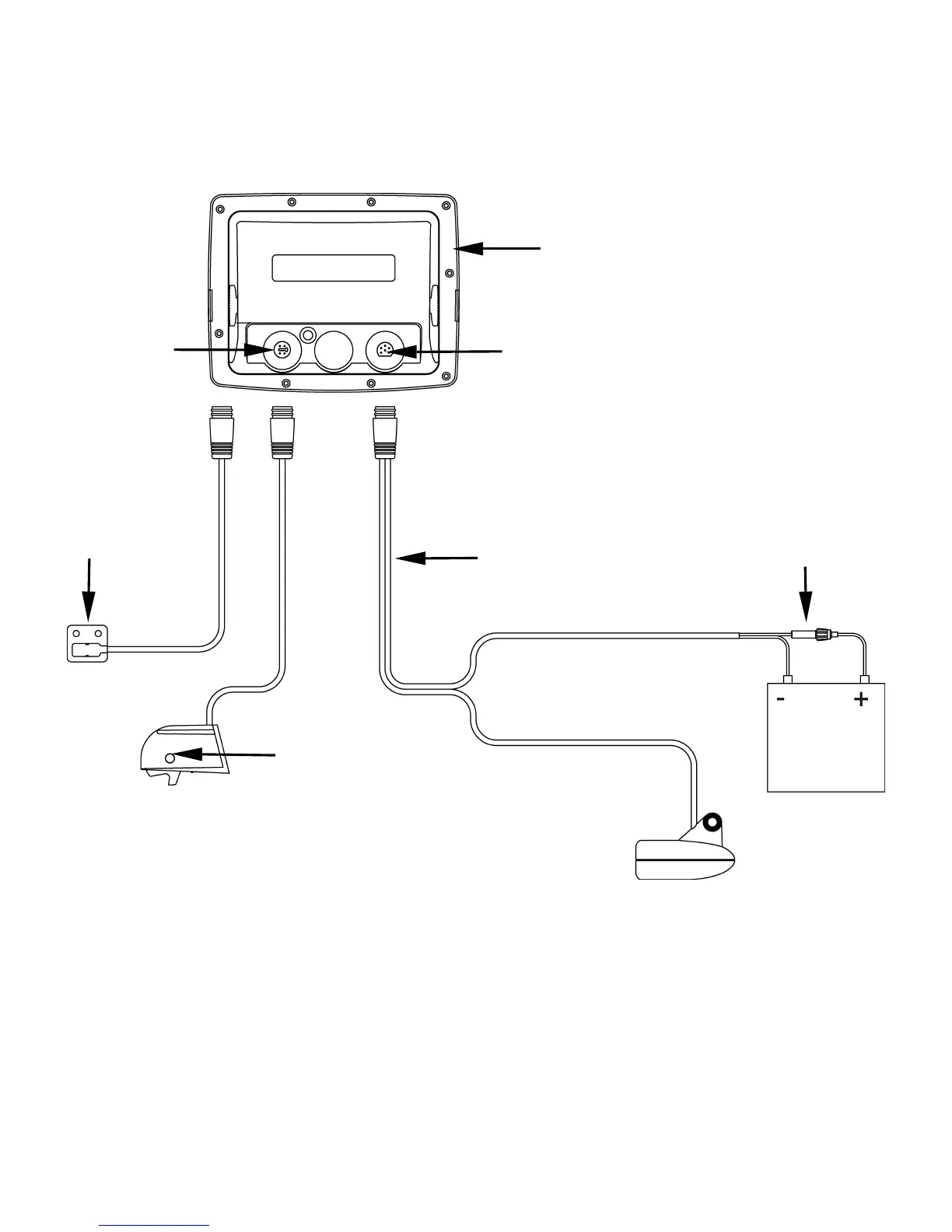

perature sensor. See the following wiring diagram for temperature and
speed sensor combinations.
Sonar unit with external temp sensor, external speed sensor, or combo
speed/temp sensor. The primary temperature sensor is built
into the transducer.
Optional Speed Sensor Installation
All the units in this series can display speed and distance traveled, but
only the SeaFinder 500CDF comes packed with a speed sensor. If you
Speed sensor or
combo speed/
temp sensor.
Sonar unit rear view
Temp
sensor
Temp sensor built
into transducer.
Power/transducer
cable
3-amp fuse
Power/transducer socket
Accessory
socket
