MC43E/MC43 HANDLEBAR PMC43E/MC43 HANDLEBAR P

MC43E/MC43 HANDLEBAR P

ARTS LISTARTS LIST

ARTS LIST

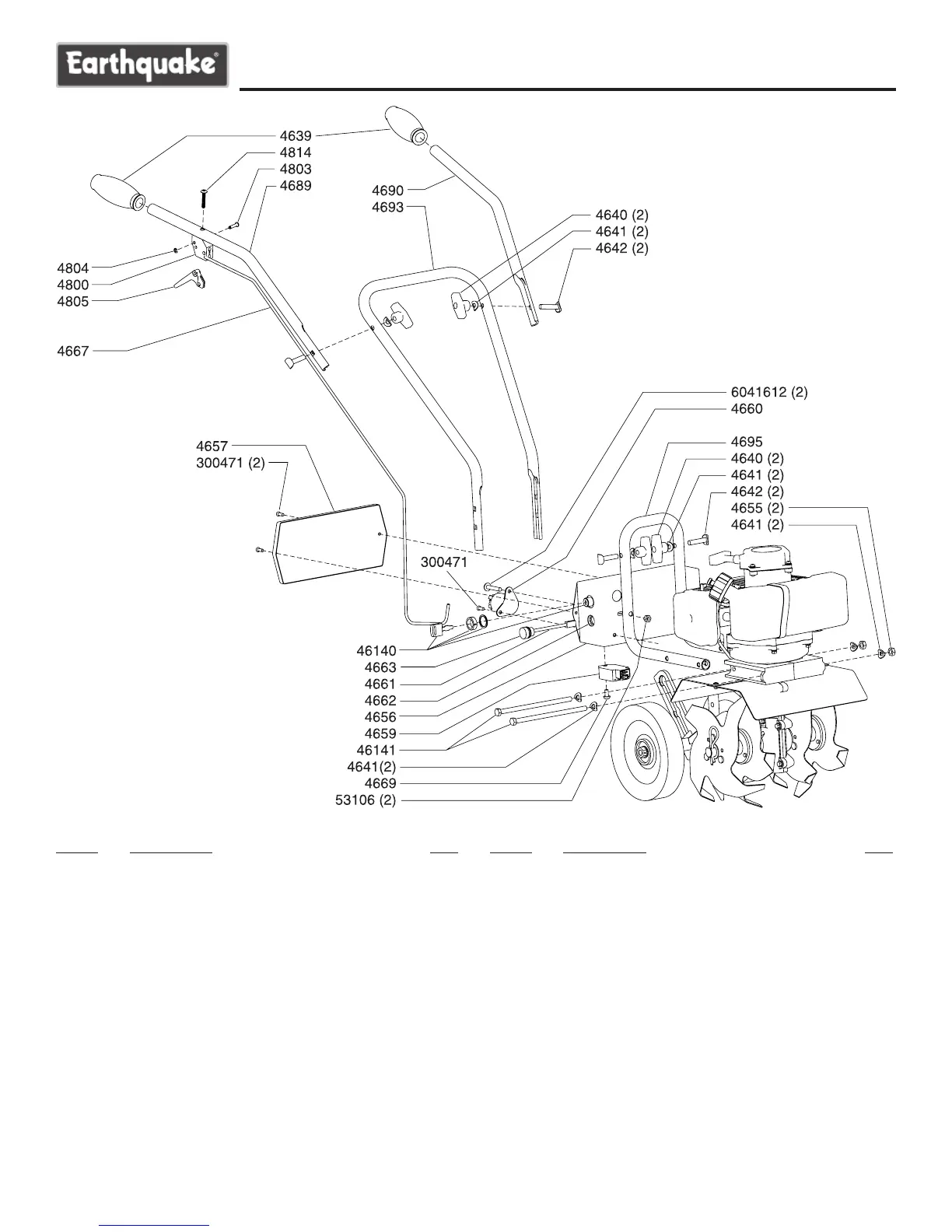

Part # Description Qty.

300471 BOLT, M5 X 12MM MC43E ........................................ 3

46122 BATTERY 12V 7A MC43E .......................................... 1

46140 KEY SWITCH MC43E ................................................ 1

46141 BOLT M8 X 1.25 X 160MM HEX HD ........................... 2

4639 HANDLE GRIP .......................................................... 2

4640 NUT, T-HANDLE ........................................................ 4

4641 WASHER ................................................................... 8

4642 BOLT, HANDLE CLAMP ............................................. 4

4643 ENGINE & TRANSMISSION ASSEMBLY .................... 1

4650 NUT, M6 FLANGED HEX HD ..................................... 2

4655 NUT, M8 HEX HD ...................................................... 2

4656 BATTERY BOX MC43E .............................................. 1

4657 COVER, BATTERY BOX MC43E ................................ 1

4659 VOLTAGE RECTIFIER MC43E .................................. 1

4660 SOLENOID MC43E ................................................... 1

4661 CHARGER PIGTAIL MC43E ...................................... 1

Part # Description Qty.

4662 NUT, CHARGER PIGTAIL MC43E ............................. 1

4663 CAP, CHARGER PIGTAIL MC43E .............................. 1

4667 THROTTLE CABLE ................................................... 1

4669 BOLT, M6 X 1MM X 12MM PAN HD MC43E ............... 1

4681 BATTERY CHARGER, (NOT SHOWN) MC43E ......... 1

4689 HANDLEBAR UPPER RIGHT .................................... 1

4690 HANDLEBAR UPPER LEFT....................................... 1

4693 HANDLEBAR MIDDLE ............................................... 1

4695 HANDLEBAR LOWER ............................................... 1

4800 THROTTLE HOUSING .............................................. 1

4803 CLEVIS PIN, .188 DIA. GROOVED ............................ 1

4804 E- CLIP, RETAINING RING FOR .188 PIN ................. 1

4805 THROTTLE TRIGGER, LONG THROW .................... 1

4814 BOLT, 10-24 X 1-1/4" PHILLIPS TRUSS HD............... 1

53106 NUT, 1/4-20 BI-WAY LOCK MC43E ............................ 2

6041612 SCREW, 1/4-20 X 1-1/2" PH TRUSS HD MC43E ........ 2
