1-800-345-6007 Page 17 www.ardisam.com

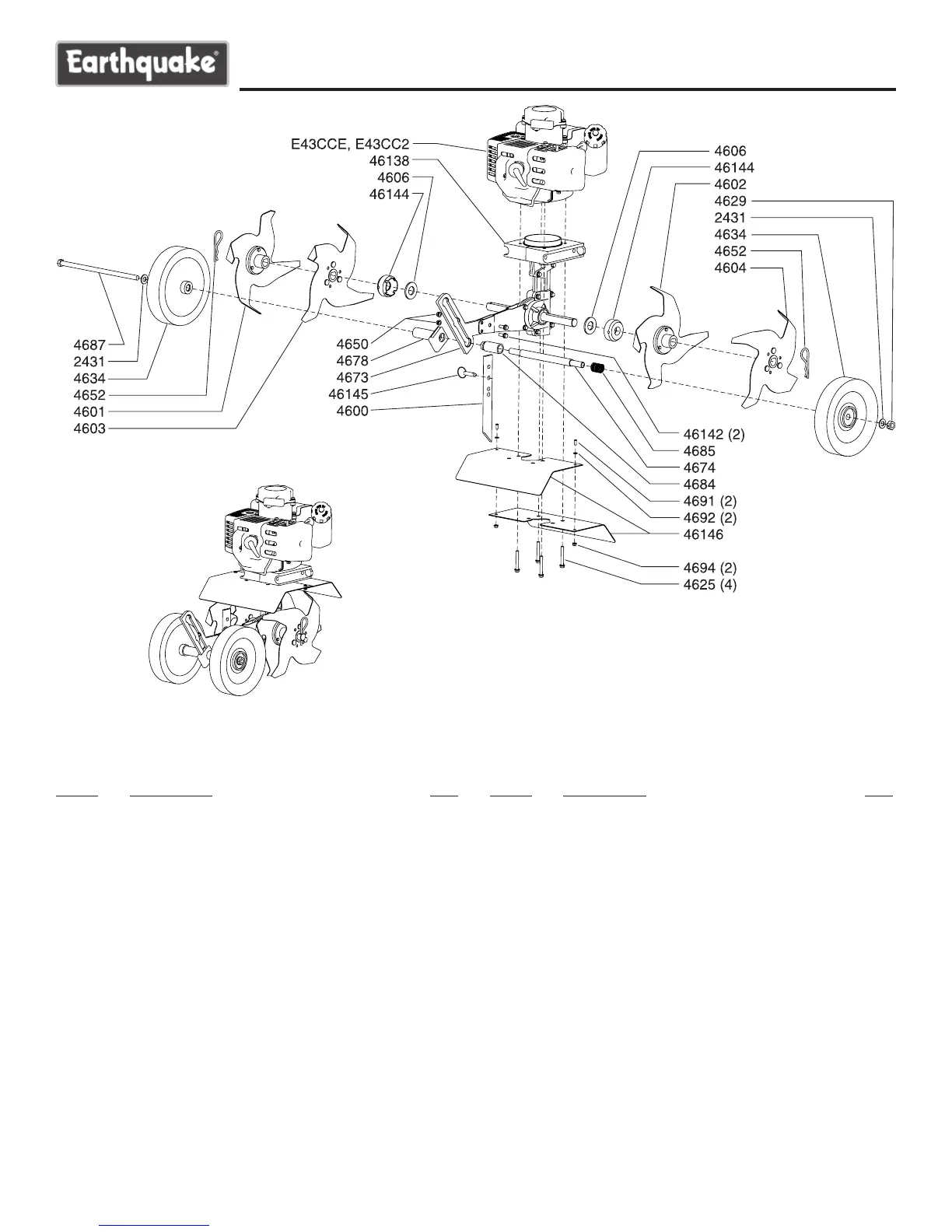

MC43E/MC43 HOOD & TINES PMC43E/MC43 HOOD & TINES P

MC43E/MC43 HOOD & TINES P

ARTS LISTARTS LIST

ARTS LIST

Part # Description Qty.

2431 WASHER, 10MM NARROW FLAT .............................. 2

4600 DRAG BAR ................................................................ 1

4601 TINE "A" RIGHT OUTSIDE........................................ 1

4602 TINE "C" LEFT INSIDE .............................................. 1

4603 TINE "B" RIGHT INSIDE ............................................ 1

4604 TINE "D" LEFT OUTSIDE .......................................... 1

4606 WASHER, FIBER ....................................................... 2

46138 TRANSMISSION ASSEMBLY ..................................... 1

46142 BOLT M6 X 1.0 X 15MM FLANGED HEX HD ............. 2

46144 DUST CAP ................................................................ 2

46145 DETENT PIN 5/16 X 1-1/2” ........................................ 1

46146 TINE SHIELD ............................................................. 2

4625 BOLT, M6 X 1.0 X 42MM FLANGED HEX HD ............ 4

4634 WHEEL ...................................................................... 2

Part # Description Qty.

4650 NUT M6 X 1.0 FLANGED HEX HD ............................ 2

4652 HAIR PIN, 5/8-3/4 COTTER ....................................... 2

4673 WHEEL HOLDER ...................................................... 1

4674 WHEEL TUBE ............................................................ 1

4678 GUIDE, WHEEL TUBE ............................................... 1

4684 TUBE, WHEEL LOCK ................................................ 1

4685 SPRING, WHEEL LOCK ............................................ 1

4687 BOLT M10 X 1.5 X 225MM HEX HD ........................... 1

4691 BOLT, M4 X 0.7 X 10MM PHILLIPS PAN HD .............. 2

4692 WASHER, M4 FLAT ................................................... 2

4694 NUT M4 X 0.7 FLANGED HEX HD ............................ 2

E43CC ENGINE 43CC CAT CONVERT (MC43) .................... 1

E43CCE ENGINE 43CC CAT CONVERT ELEC START ........... 1
