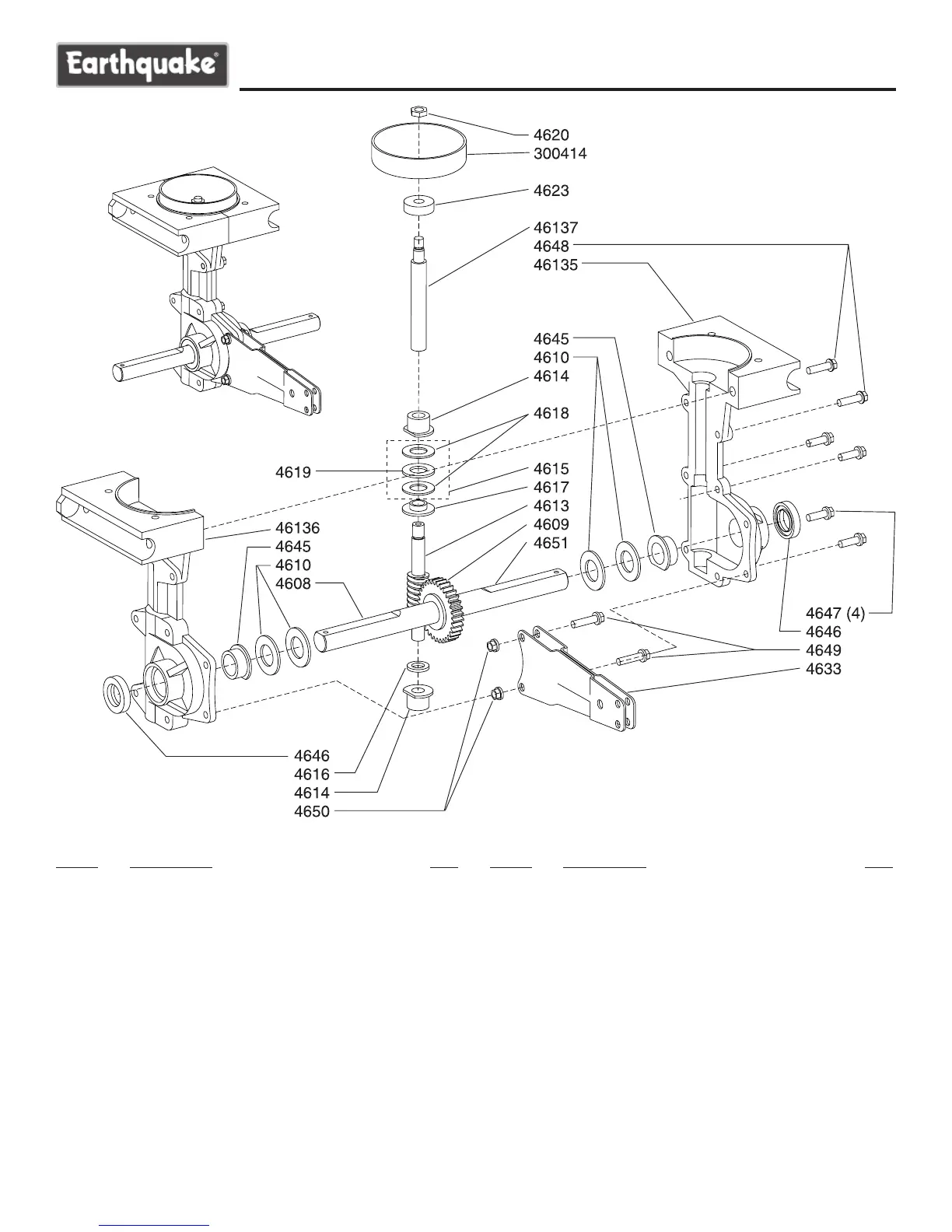

MC43E/MC43 TRANSMISSION PMC43E/MC43 TRANSMISSION P

MC43E/MC43 TRANSMISSION P

ARTS LISTARTS LIST

ARTS LIST

Part # Description Qty.

300414 CLUTCH DRUM ........................................................ 1

4608 TINE SHAFT .............................................................. 1

4609 GEAR, TINE SHAFT .................................................. 1

4610 SHIM, TINE SHAFT ................................................... 4

4613 WORM SPUD ............................................................ 1

46135 CASTING, RIGHT LOWER TRANSMISSION ............ 1

46136 CASTING, LEFT LOWER TRANSMISSION ............... 1

46137 DRIVE SHAFT ........................................................... 1

4614 BUSHING, DRIVE SHAFT ......................................... 2

4615 THRUST BEARING ASSEMBLY ................................ 1

4616 SPACER, BUSHING .................................................. 1

4617 REDUCER, THRUST BEARING ................................ 1

Part # Description Qty.

4618 WASHER, THRUST ................................................... 2

4619 THRUST BEARING CAGE ASSEMBLY ...................... 1

4620 NUT, M8 JAM ............................................................ 1

4623 BALL BEARING, 9MM ............................................... 1

4633 ARM WHEEL/DRAG STAKE MOUNT ........................ 1

4645 BUSHING, TINE SHAFT ............................................ 2

4646 SEAL, TINE SHAFT ................................................... 2

4647 BOLT, M6 X 1.0 X 18MM FLANGED HEX HD ............ 4

4648 BOLT, M6 X 1.0 X 22MM FLANGED HEX HD ............ 2

4649 BOLT, M6 X 1.0 X 24MM FLANGED HEX HD ............ 2

4650 NUT, M6 FLANGED HEX HD ..................................... 2

4651 TINE GEAR & SHAFT ASSEMBLY ............................. 1
