EarthQuake MC43E User Manual

1-800-345-6007 Page 6 www.ardisam.com
UNPUNP
UNPUNP
UNP
ACKING AND ASSEMBLACKING AND ASSEMBL
ACKING AND ASSEMBLACKING AND ASSEMBL
ACKING AND ASSEMBL
YY
YY
Y
UNPUNP
UNPUNP
UNP
ACK MINI CULACK MINI CUL
ACK MINI CULACK MINI CUL
ACK MINI CUL
TIVTIV
TIVTIV
TIV
AA
AA
A
TT
TT
T
OROR
OROR
OR
1. Carefully lift the mini cultivator out of the box, remove
any packing material and cut any ties holding the handlebar
pieces to the mini cultivator assembly.
ASSEMBLASSEMBL
ASSEMBLASSEMBL
ASSEMBL
YY
YY
Y
1. Stand the mini cultivator assembly upright with tines
and wheels on a level surface. Wheels should be set in the
lowest position. DO NOT place the mini cultivator on a
high surface where it can fall and cause property
damage or personal injury.

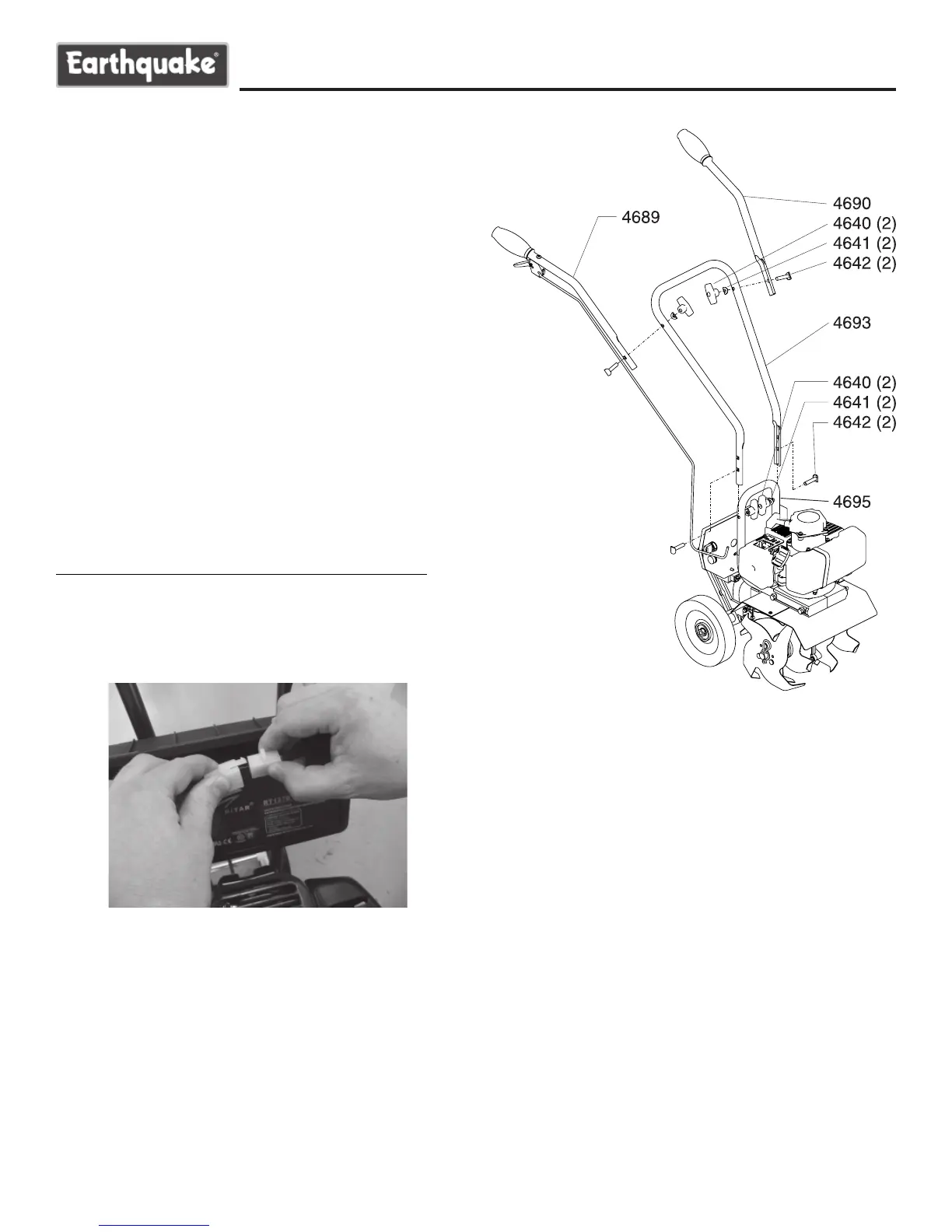

2. Using two tee handle nuts (4640), two bolts (4642), and
two curved washers (4641), assemble the middle handlebar
(4693) to the lower handlebar (4695) that is already
attached to the mini cultivator assembly. See Figure 1. The
middle handlebar can be installed in two positions one high
and one low. DO NOT overtighten the tee handle nuts.
3. Attach the upper right and left handlebars (4689 &
4690) to the middle handlebar using the two remaining tee
handle nuts, bolts, and curved washers. See Figure 1. DO
NOT overtighten the tee handle nuts.
For the Electric Start Mini Cultivator Model MC43E,
remove the battery box cover and plug the white plastic
connector from the battery into the mating white plastic
connector in the battery box. See Figure 2. Make sure the
ignition key is removed from the ignition before
connecting the wiring for the battery.
Figure 1
(Model MC43E shown. Figure 1 applies to
both models MC43 & MC43E.)
Figure 2
