Eaton Cutler-Hammer - Seismic Tested and Approved Product Mounting Instructions

IB01602002E
Page 15
Effective 10/02
These cleats must be
ATVISP, NTVSSP

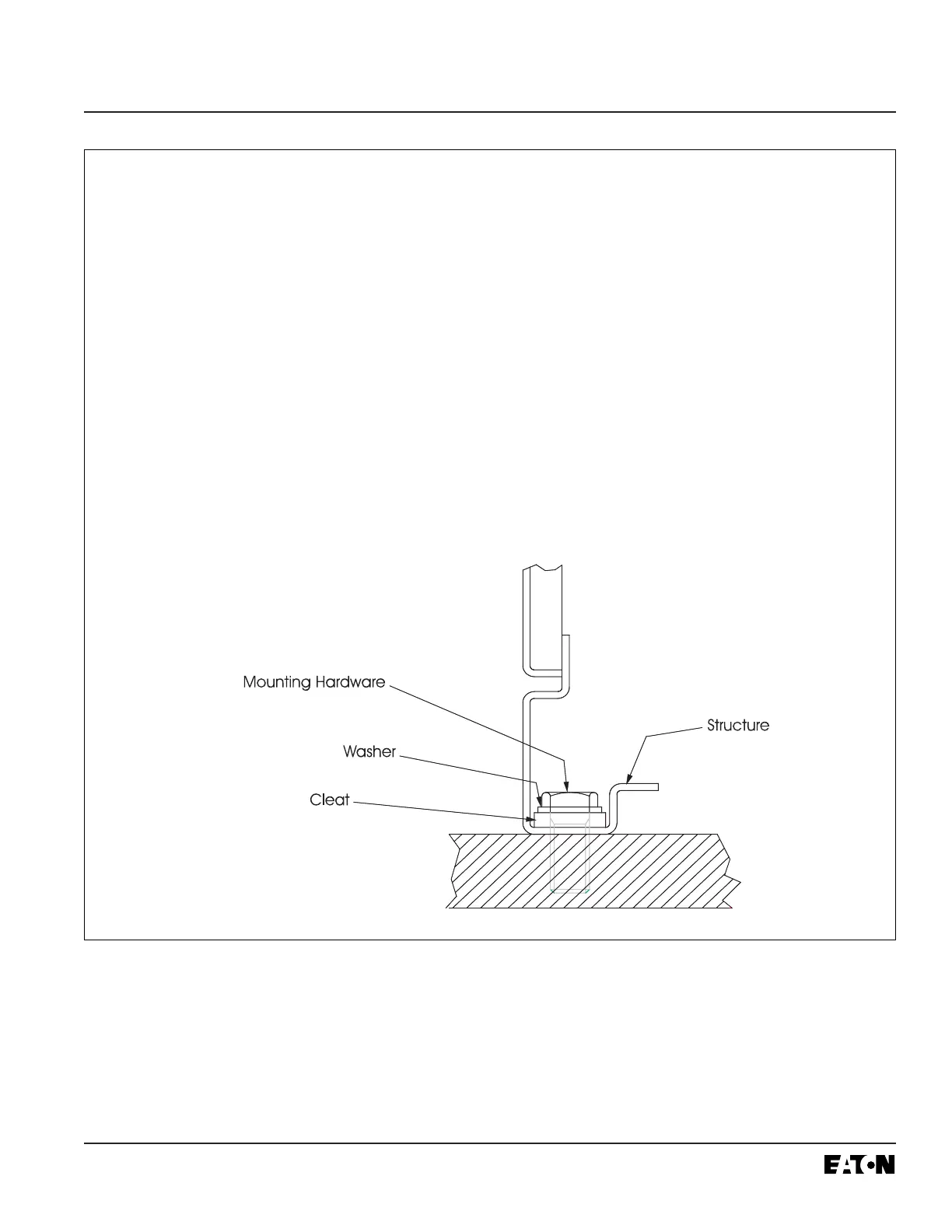

Figure 4-1 Seismic Tested and Approved Product Mounting Instructions
Seismic Tested and Approved Product Mounting Instructions
In all cases, the unit must be mounted per the outline drawing. In
addition, the floor-mounted units must use the provided cleats.
These cleats must be placed between the head of the bolt and the
sheet metal enclosure. It is also necessary to use 0.5-13UNC Grade
5 or better hex head bolts. These bolts are to be torqued to 50 ft. lbs.
(68 Nm).
