IB01602002E
Page 26
Effective 10/02
Cover Replacement
Step 1: Place the cover against the frame (Figure 7-10).
Step 2: Locate the cover lifting handles (provided with
the equipment) and insert the tabs into the
screw holes (Figure 7-11).
Step 3: Grasp the cover lifting handles and pull up, slid
ing the upper cover flange under the roof flange
(Figure 7-12). When the lower cover flange
clears the top of the lower cross member, push
the bottom of the cover in place (Figure 7-13).
Step 4: Replace the cover screws and selaing washers,
taking care not to cross-thread the screws into
the frame (Figure 7-14). Tighten to 8 ft lbs. Do
not over tighten.

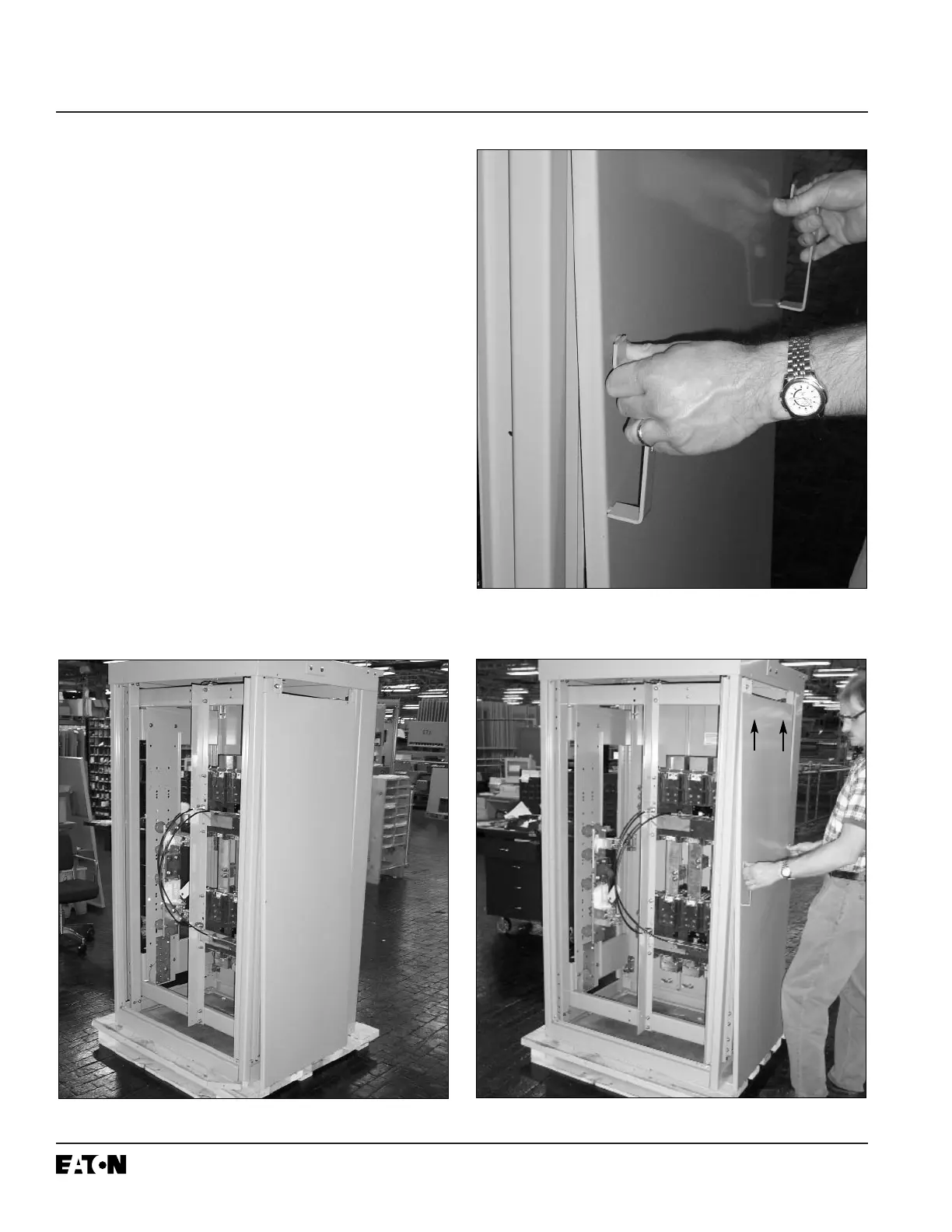

Figure 7-10 Cover Against Frame
Figure 7-11 Inserting Tabs into Screw Holes
Figure 7-12 Sliding Cover Flange Under Roof Flange
Slide Up
Under
Roof Flange
To Next Page
