Eaton E Series - Serial RS232 Connection

2.1.4
Serial RS232 Connection with Protective Device (up to
Release 2.4)
2.1.4.1 Serial RS232 Connection to a PC

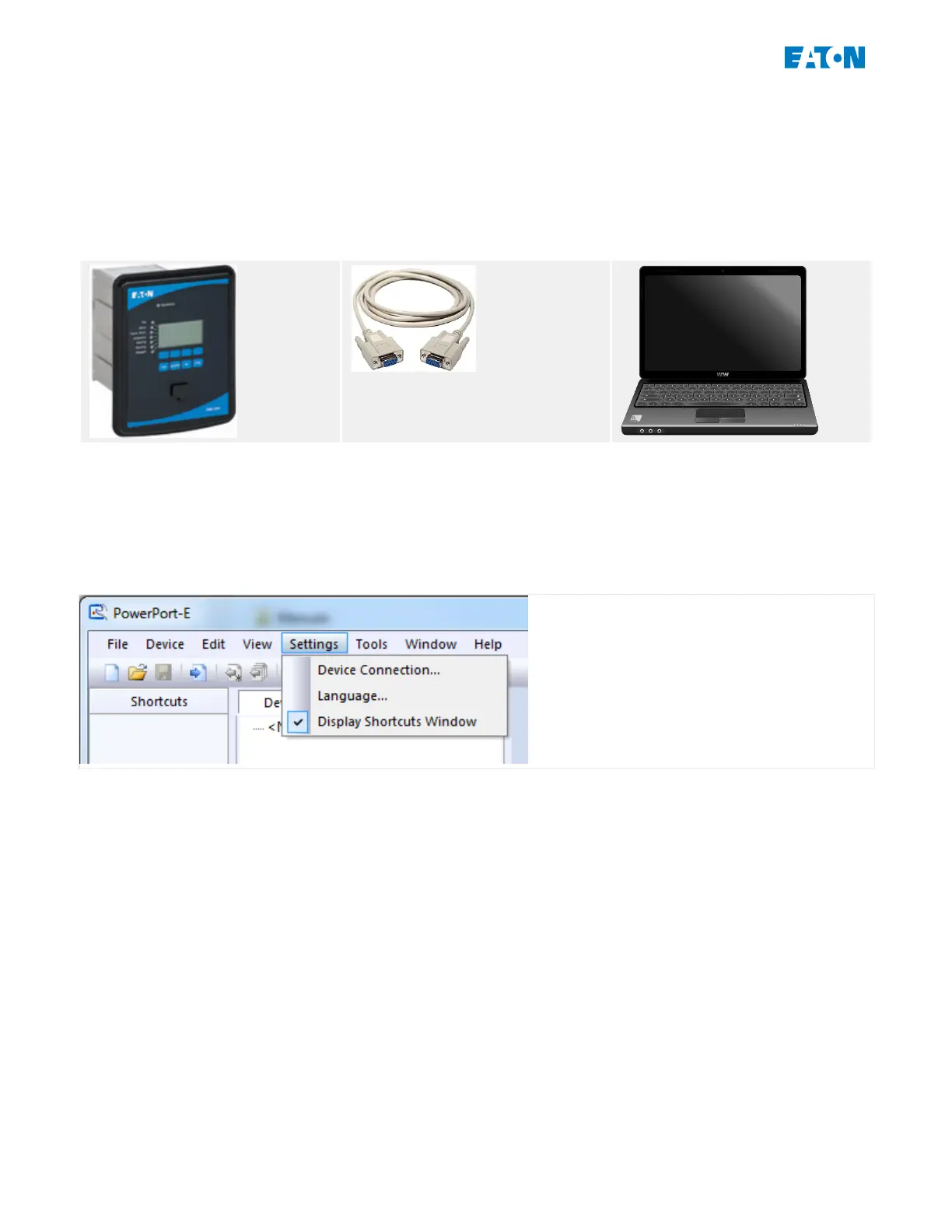

Connect a Protective Device to a PC via Serial RS232 Connector
SmartV_Z23
Null Modem cable
SmartV_Z06
•
Use the Null Modem cable to connect the PC with the switched on protective
•
device.
• Start PowerPort-E.•
• In the “Settings” menu select the menu item “Device Connection…”•
• Select “Serial Connection” in the dialog. Then you can pick the particular COM port•
to which the protective device is connected from the selection list.
