Plug in options
K9 Aux Contacts

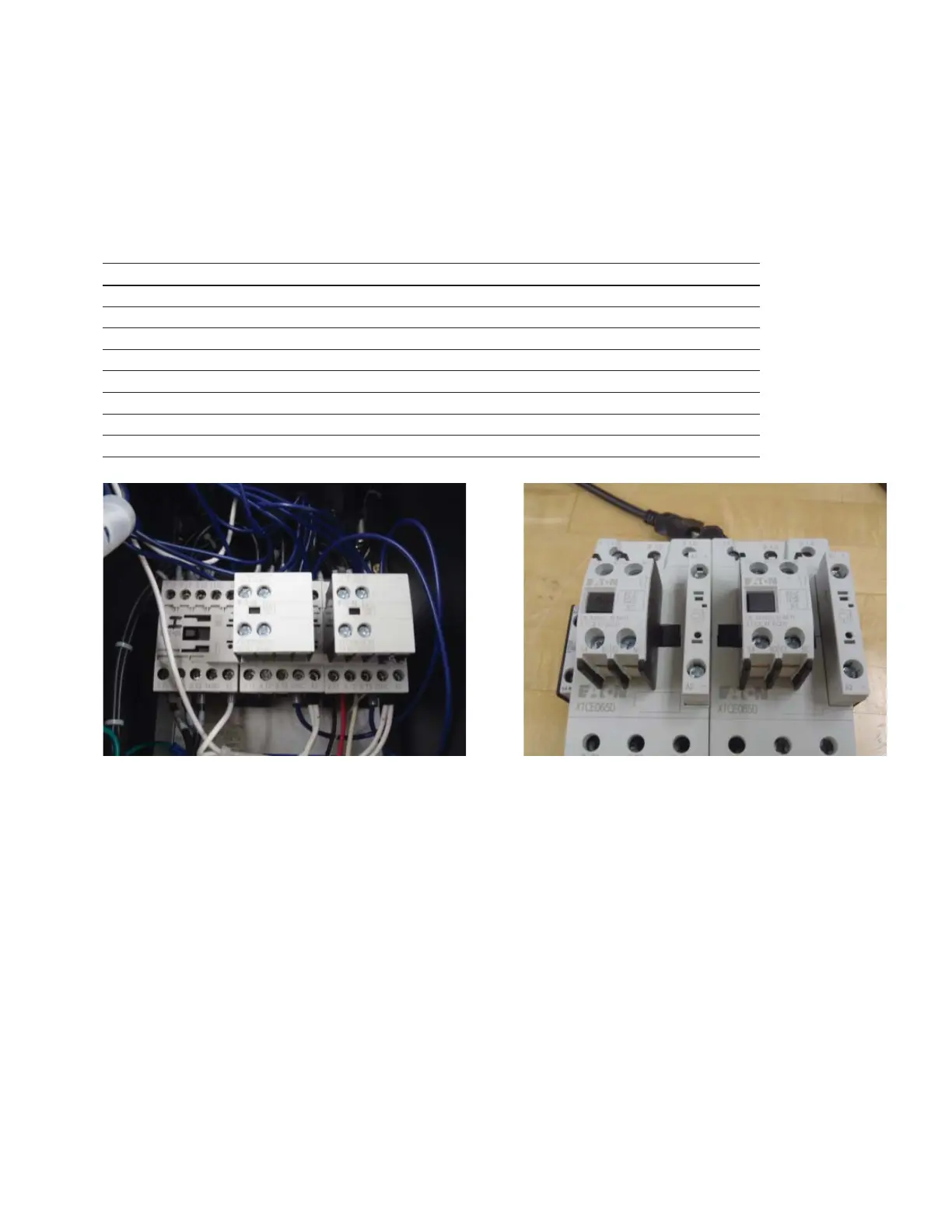

This option adds 1 N.O. & N.C. auxiliary contacts to both the Drive output and bypass contactors for customer use.
K9 Aux Contact Applications
Product Frame Hp Voltage Qty Eaton P/N Description
IPass 4 ALL ALL 2 XTCEXFAC11 Aux NO, NC Contact, B/C frame Top Mount
IPass 5 ALL ALL 2 XTCEXFAC11 Aux NO, NC Contact, B/C frame Top Mount
IPass 6 ALL ALL 2 XTCEXFAG11 Aux NO, NC Contact, D/F/G frame Top Mount
IPass 7 ALL ALL 2 XTCEXFAG11 Aux NO, NC Contact, D/F/G frame Top Mount
IDisc 4 ALL ALL 1 XTCEXFAC11 Aux NO, NC Contact, B/C frame Top Mount
IDisc 5 ALL ALL 1 XTCEXFAC11 Aux NO, NC Contact, B/C frame Top Mount
IDisc 6 ALL ALL 1 XTCEXFAG11 Aux NO, NC Contact, D/F/G frame Top Mount
IDisc 7 ALL ALL 1 XTCEXFAG11 Aux NO, NC Contact, D/F/G frame Top Mount
