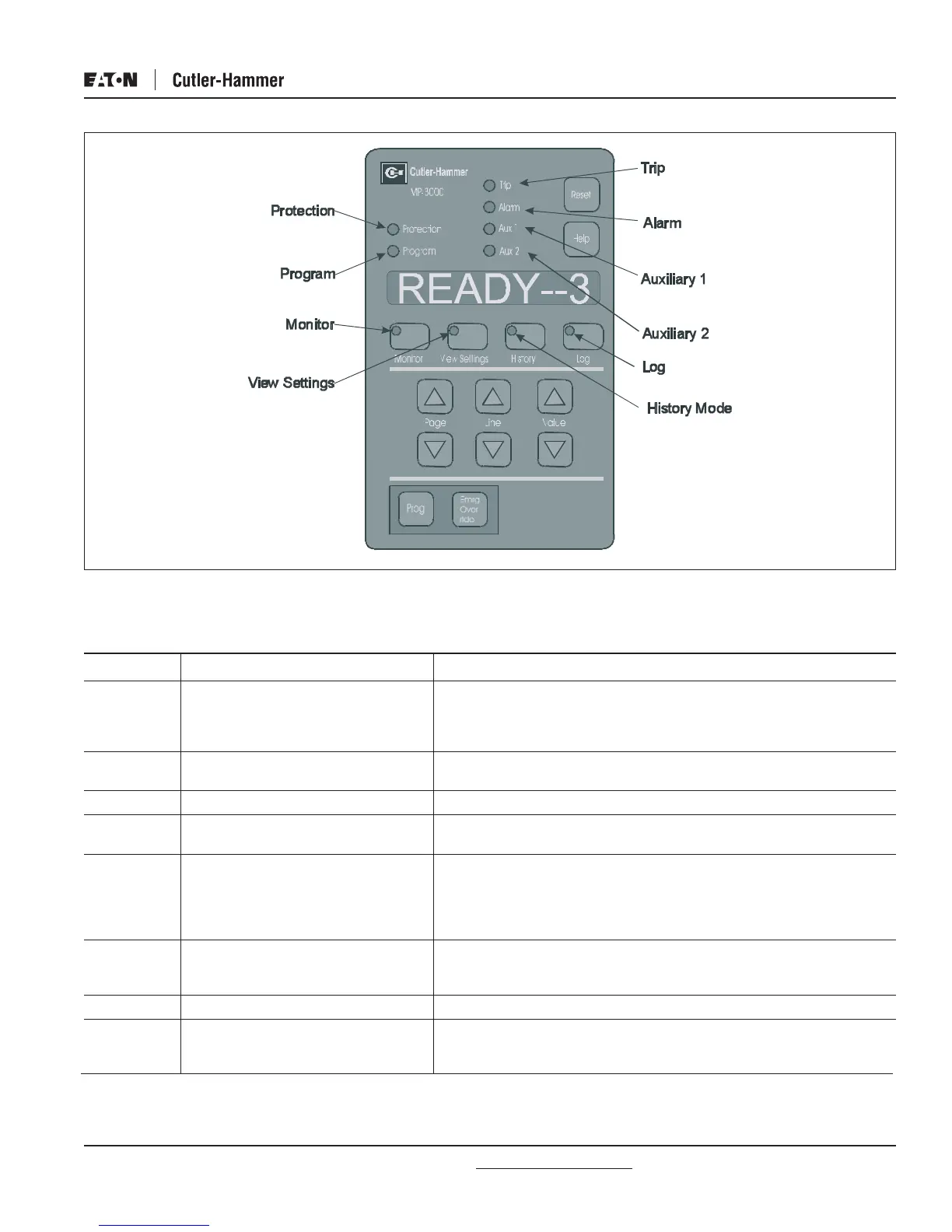

Fig. 4.2 MP-3000 LED Indicators
Display
READY—1
READY—3
RUN
START
DISARMED
ABKSP XX
ILLEGAL
SETCLOCK
Complete Help Message
READY TO START MOTOR, SINGLE
PHASE TEST MODE
READY TO START MOTOR, THREE
PHASE MODE
MOTOR IS RUNNING
ATTEMPTING TO START MOTOR
WARNING RELAY IS DISARMED AND
CAN NOT TRIP
ANTI-BACKSPIN ACTIVE, REMAIN-
ING MINUTES ACTIVE SHOWN
AN ILLEGAL REQUEST WAS MADE
SET THE CLOCK
Description
WARNING
MP-3000 has been set to 1 PHASE for bench testing only. Will not
protect a 3-phase motor. Change setting P13L1 to 3 PHASE for normal
motor protection.
Motor is stopped and MP-3000 is ready for a start, 3-phase mode.
Motor is running, as indicated by phase currents.
Motor is starting, and has not yet reached transition to RUN as defined
by user settings
WARNING
Protection functions have been blocked from operating the trip relay by
user setting P12L18. MOTOR IS UNPROTECTED. This mode of
operation is for commissioning in a critical process only. See Section
5.12.18.
The motor is stopped, and the trip contact has been opened to prevent
restarting until the antibackspin time delay has expired. XX is the
remaining minutes before restarting is allowed.
Response to request for an action which the relay cannot perform.
The real time clock has lost the current time from lack of power for more
than 30 days to the MP-3000, set the clock using program mode (see
Section 5.12.8 through 5.12.14)
