Network Shutdown Module V3 – User Manual - 34 003 934 XU / AE Page 7/65

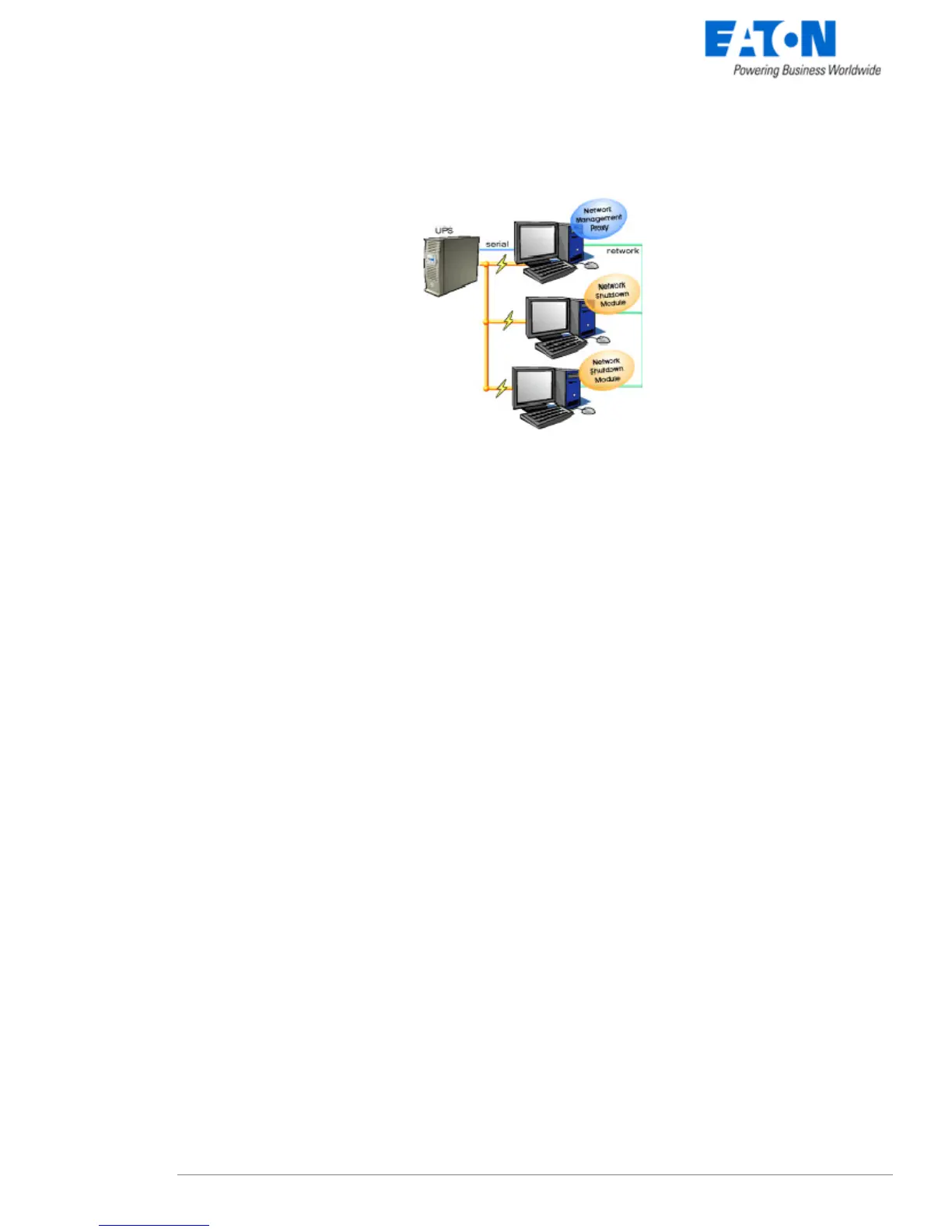

Connection with Network Management Proxy
On the diagram above, three types of connections are required:
z a point-to-point link (serial or USB),
z the electrical power cables,
z the TCP/IP communication network.
1.4.3 Network Performances
The Network Management Card is designed to support a maximum of:
z 35 Network Shutdown Module connections in standard secure mode
z 100 connections with NSM 3.10 min. and NMC 66102/DA min. in UDP mode
Network Management Proxy, installed on a dedicated server, with at least 500 MB of Ram and a 1 GHz
CPU, is designed to support a maximum of:
z 250 Network Shutdown Module connections in standard secure mode.
