Instruction Leaet PUB53675

Effective December 2021

PowerXL DM1 and DM1 Pro series VFD

EATON www.eaton.com

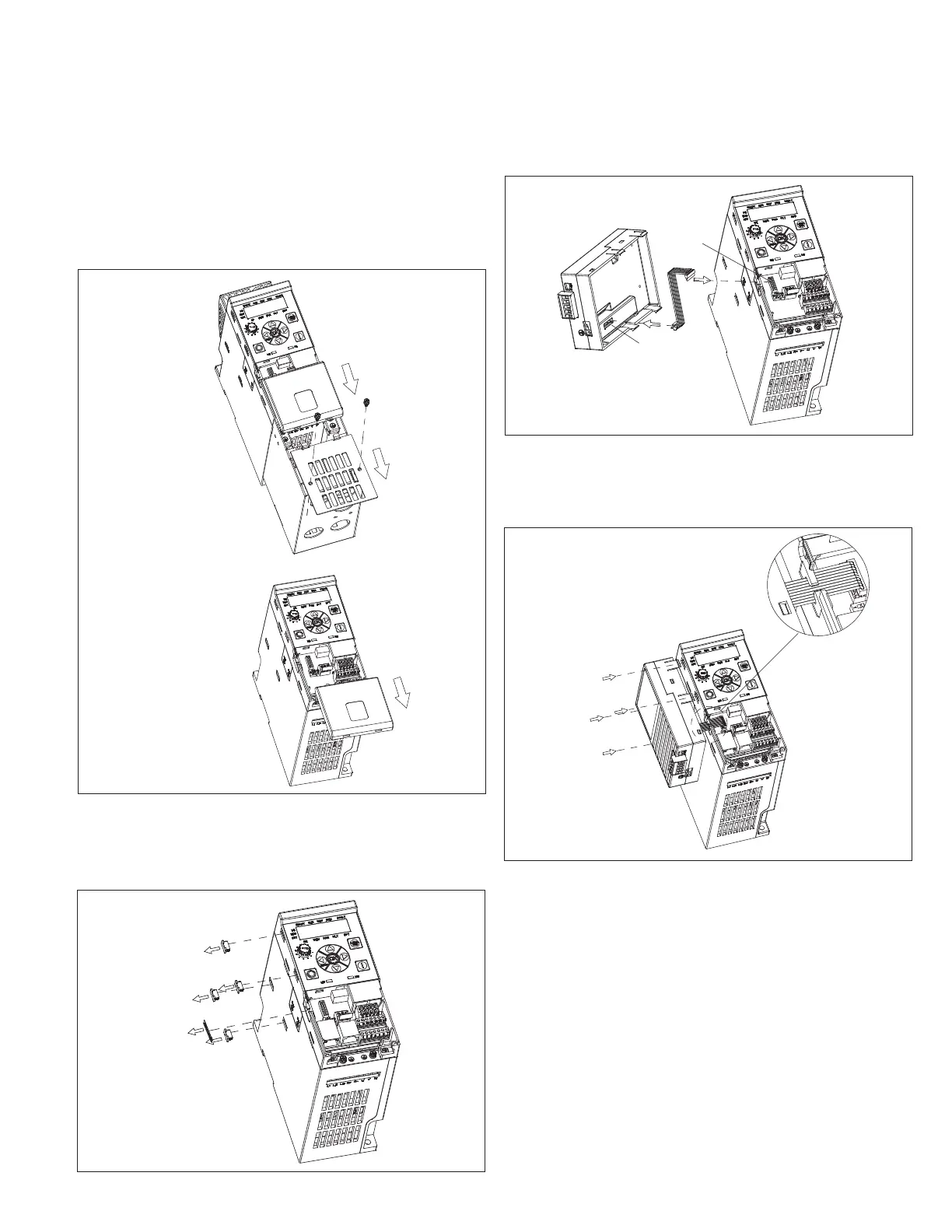

Mounting instruction for option cards

Step 1.

For enclosed type:

Remove the front cover (1) from NEMA 1 kit then remove the termi-

nal cover (2) from drive.

For open type:

Only remove the terminal cover.

Step 2.

Remove the option card port label and four snap covers from the

drive.

Enclosed type

Open type

Step 3.

Connect the cable to option card connector (3) and MCU board

connector (4).

Step 4.

Clamp the cable with the optional card port. Mount the option card

to the drive by inserting the four snaps into the slots on drive.
