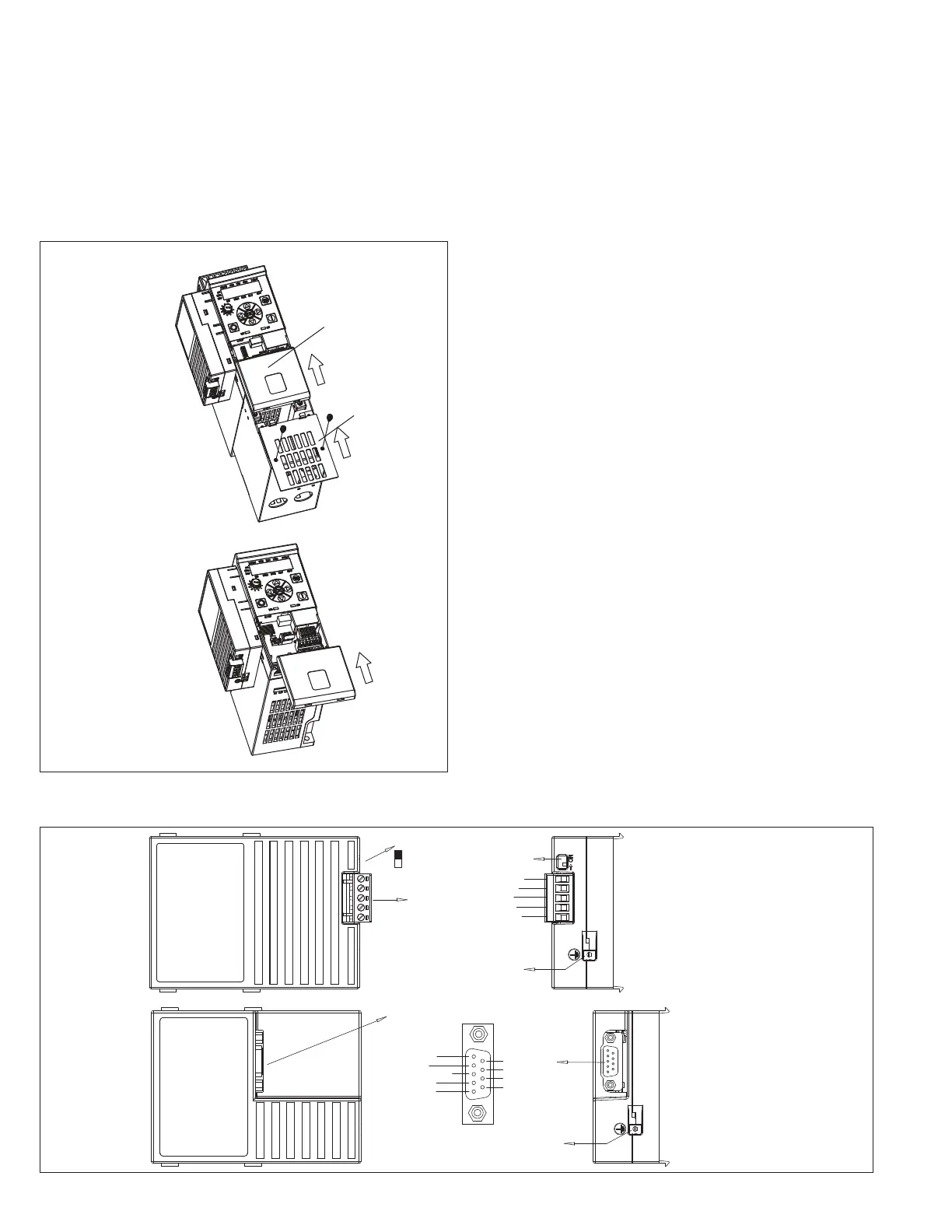

Step 5.
For enclosed type:
Install the terminal cover (1) to the drive then install the front cover
(2) to NEMA 1 kit.
For open type:
Only install the terminal cover to the drive.
Wiring instruction.
2
Enclosed type
Open type
1
Termination resistor dip switch
ON-120 Ω termination resistor On
Off-120 Ω termination resistor Off
1
3
2
4
5
User terminal
No Use
CAN_H
Shield
CAN_L
GND
Grounding terminal
5. DGND
4. RTS
3. RXD/TXD-P
2. No Use
1. No Use
9. No Use
8. RXD/TXD-N
7. No Use
6. VP
User terminals (DB9 connector)
Grounding terminal
CANOpen card
Profibus card
