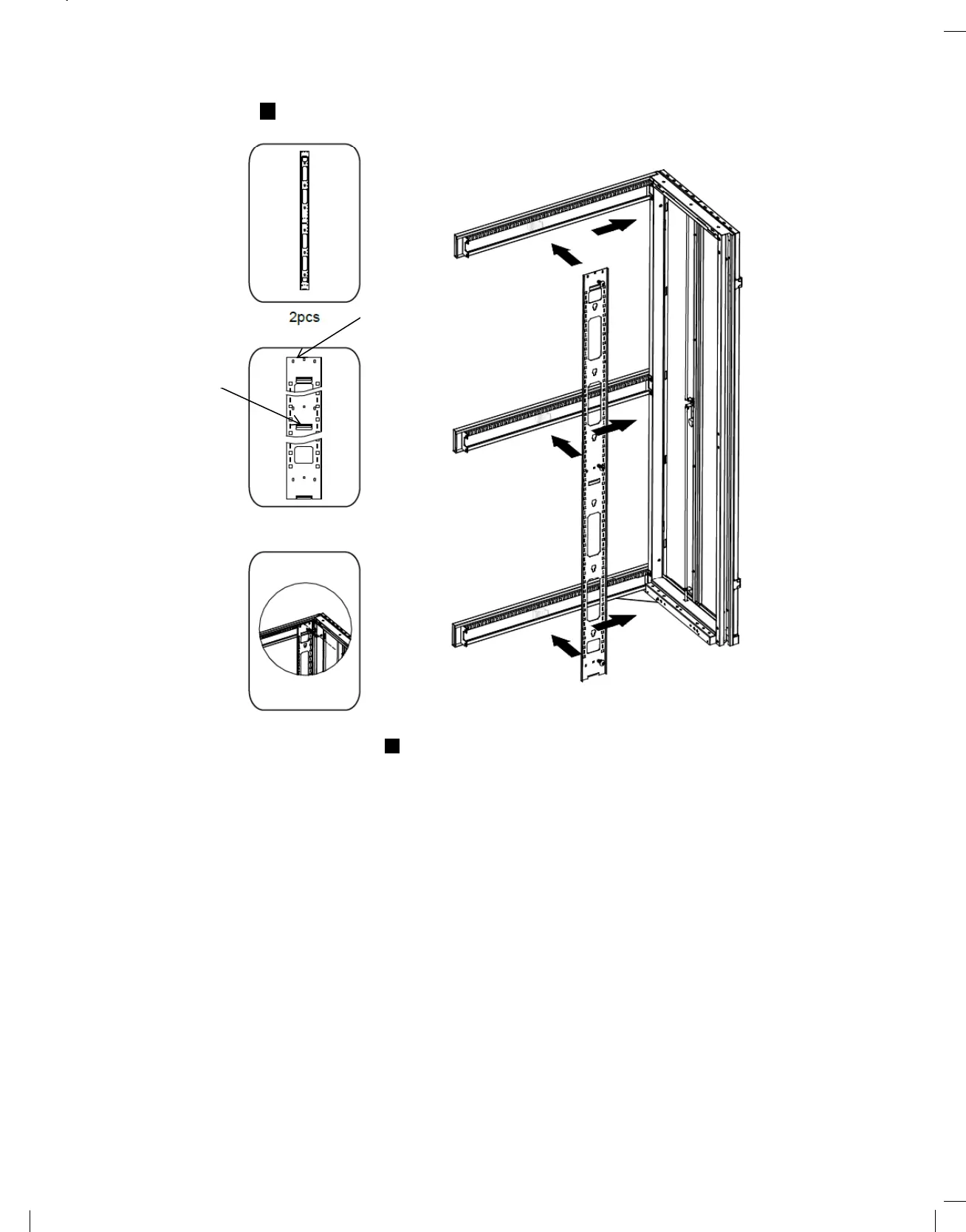

⚫ Step 5: Fixed 2pcs cable management rails to the horizontal beams

Hang on the cable management rails to the horizontal beams by the back ring.Then fixed the cable tray by GB/T6560-M4-8-ZB（Full thread）

(Cross pan head self-drilling screw)【S3 in accessories】

Note: 12pcs screws for PB series and 8pcs screws for EB series

( Washer S4 in accessories optional)

Back ring

Hole for screws fixing
