Eaton RE Series User Manual

RE SERIES_ RevA 3/5/2022
v
8

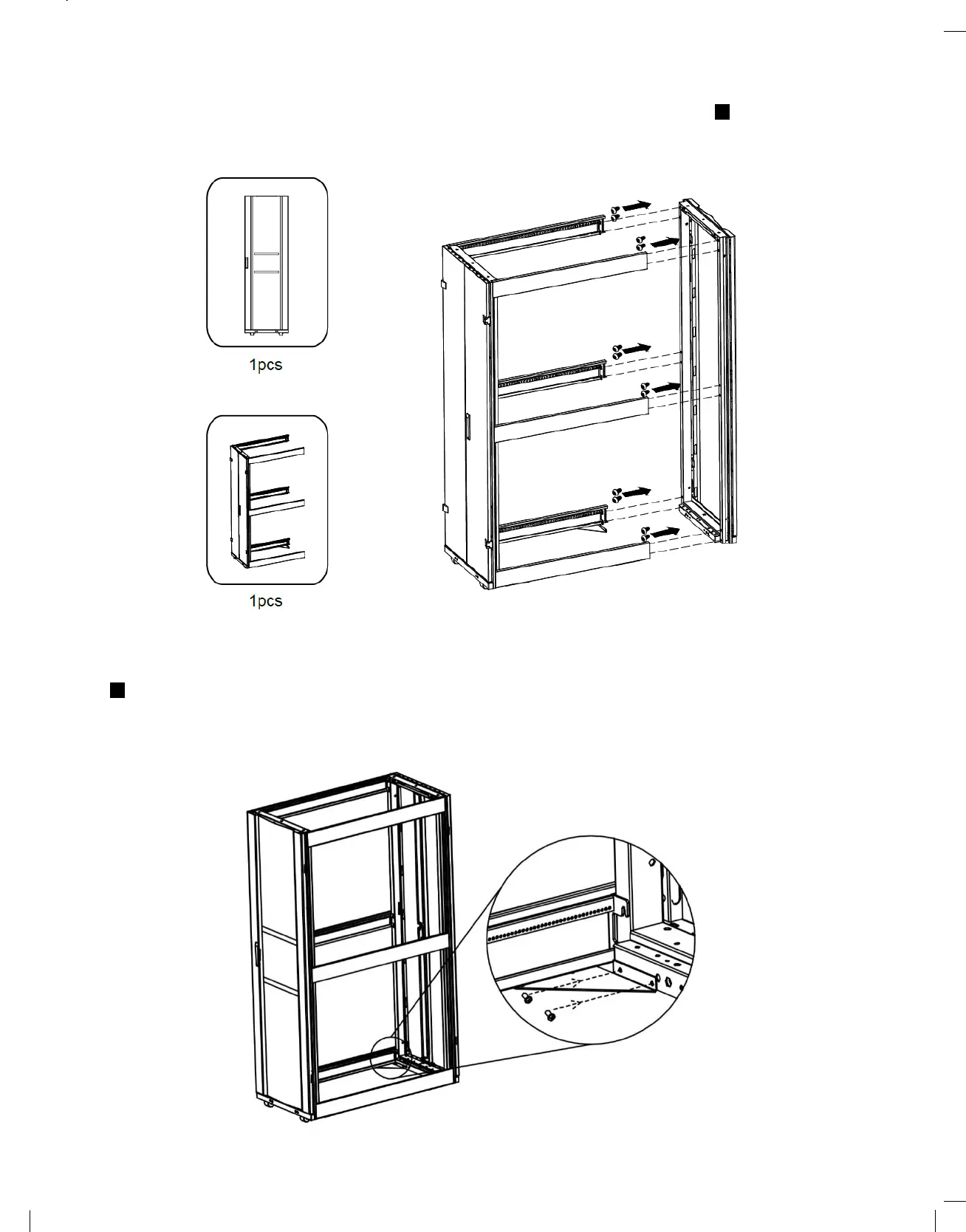

⚫ Step 3: Horizontal beams fixed to the front door frame
Fixed the each horizontal beam to the rear door frame with 2pcs GB/T70.2-M6-12-SUS(Allen flat round head screw)【S2 in accessories】NOTE: 4pcs
horizontal beams for EB series cabinet and 6pcs horizontal beams for PB series(Same way with step 2)
⚫ Step 4: Fixed the triangle reinforcing plate to the both front and rear door frame
Connect triangle reinforcing plate to the bottom frame of the front door and rear door by 8pcs GB/T6560-M5-10-ZI (Cross pan head self-drilling
screw)【S1 in accessories】

Eaton RE Series Specifications

General

Brand	Eaton
Model	RE Series
Category	Enclosure
Language	English
