Eaton RE Series User Manual

RE SERIES_ RevA 3/5/2022
v
18

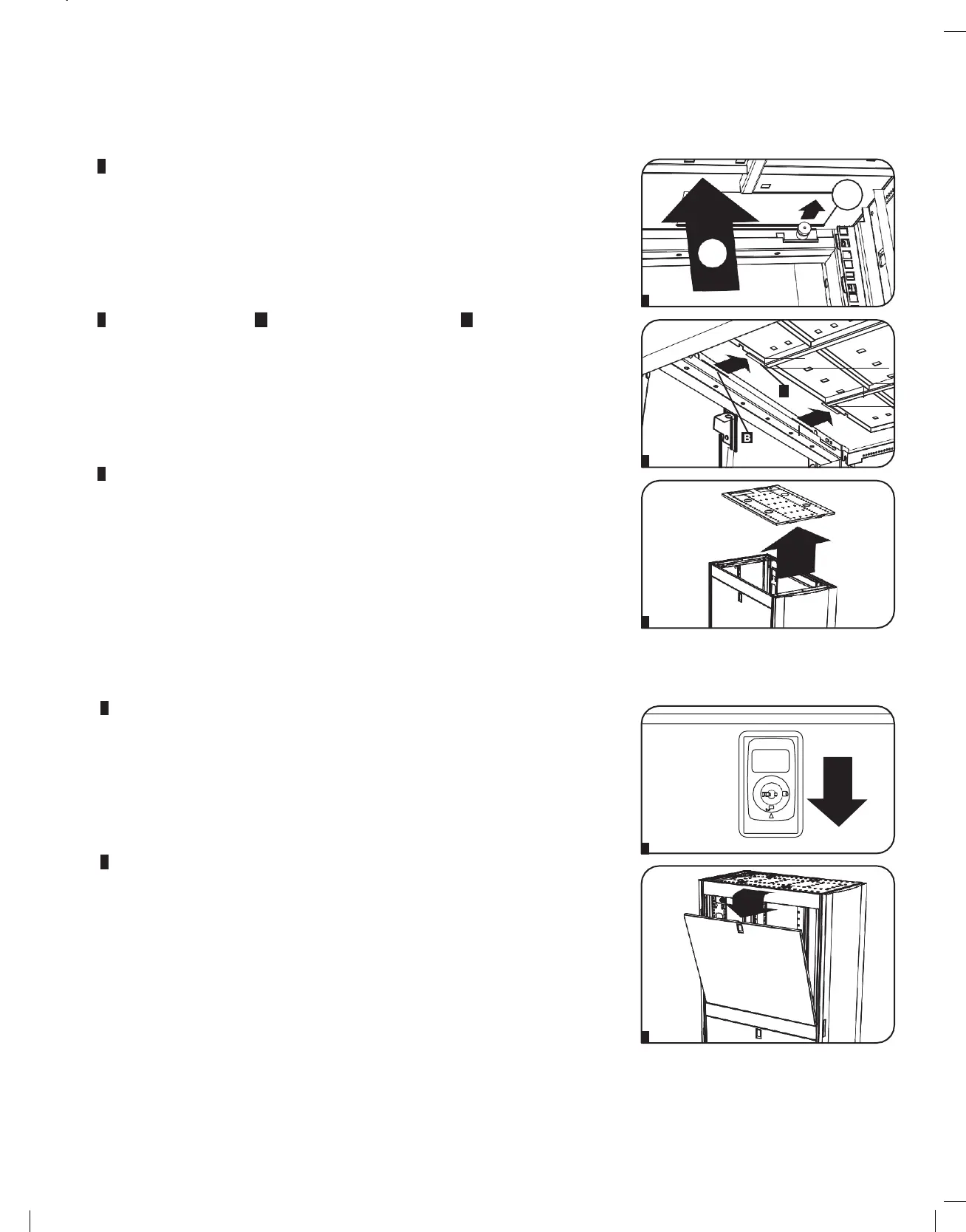

Adding or Removing Roof Panel
WARNING: Do not attempt to use the roof panel for weight-bearing purposes other than those explicitly described and approved by Eaton. Do
not attempt to add or remove the roof panel without assistance.
Removing Roof Panel
1
Pull the 2 pins near the rear of the roof panel. While holding the pins, push the roof panel upward.
2
Remove the roof panel tabs
A
from the roof panel attachment slots
B
in the enclosure frame.
3
Lift the roof panel from the enclosure.
To Reinstall Roof Panel, Reverse Steps 1-3
Adding or Removing Side Panels
Removing Side Panel
1
Open the latch by sliding it downward.
2
Tilt the top of the panel away from the enclosure.
A
2
1
2
1
3
2
1
