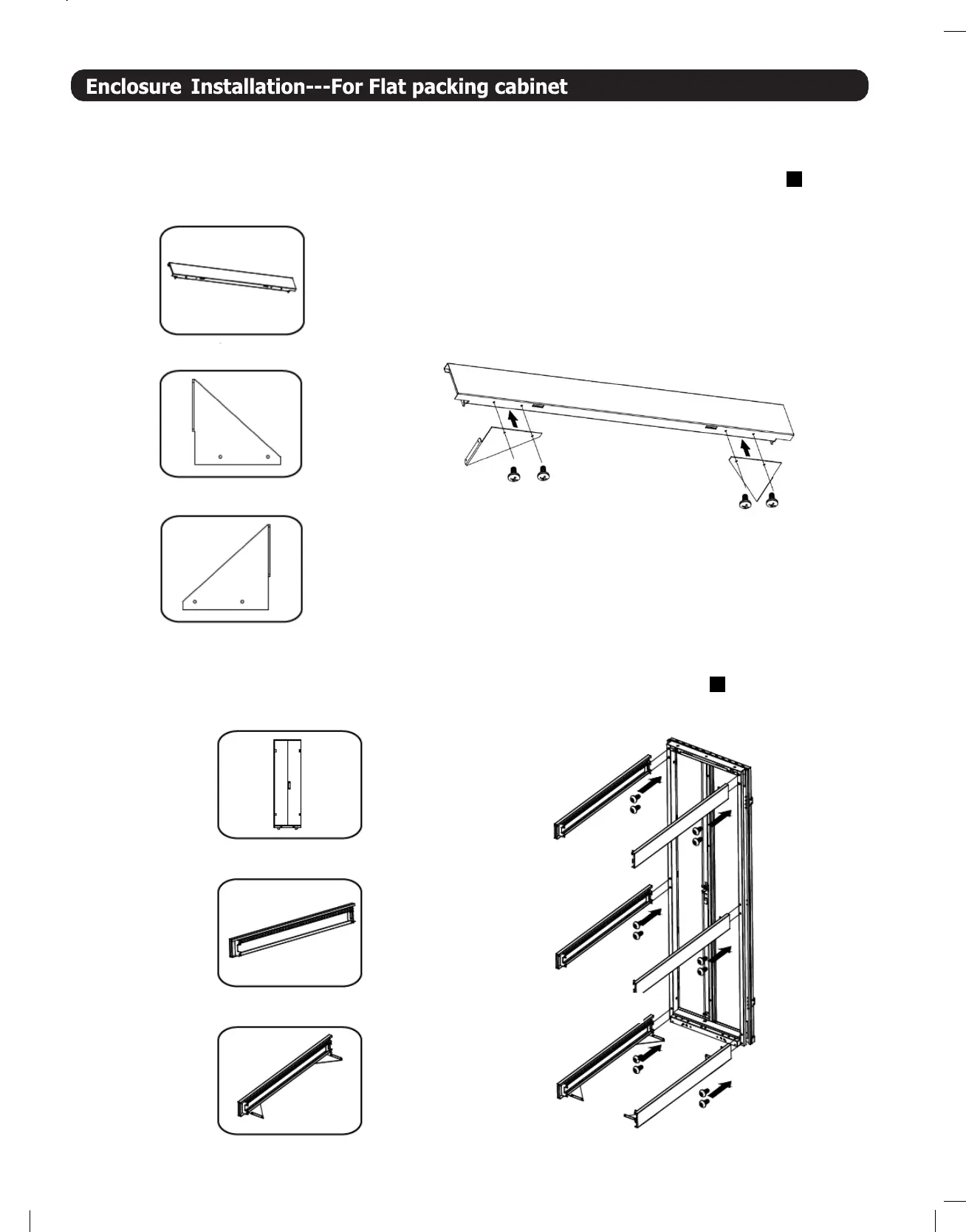

⚫ Step 1:Triangle reinforcing plate fixed
Connect triangle reinforcing plate to the bottom horizontal beams by 8pcs GB/T6560-M5-10-ZI (Cross pan head self-drilling screw)【S1 in
accessories】.
⚫ Step 2: Horizontal beams fixed to the rear door frame
Fixed the each horizontal beam to the rear door frame with 2pcs GB/T70.2-M6-12-SUS(Allen flat round head screw)【S2 in accessories】NOTE: 4pcs
horizontal beams for EB series cabinet and 6pcs horizontal beams for PB series
Triangle reinforcing plate-Right 2pcs
Triangle reinforcing plate-Left 2pcs
Horizontal beams 2pcs
Rear door and rear door farme 1pcs
Top/middle horizontal beams ( 4pcs for PB series and 2pcs fpr EB series)
Bottom horizontal beams 2pcs for both PB and EB series
