Eaton RE Series - Step 6: Fixed 4 Pcs Vertical Rails to the Horizontal Beams

RE SERIES_ RevA 3/5/2022
v
10

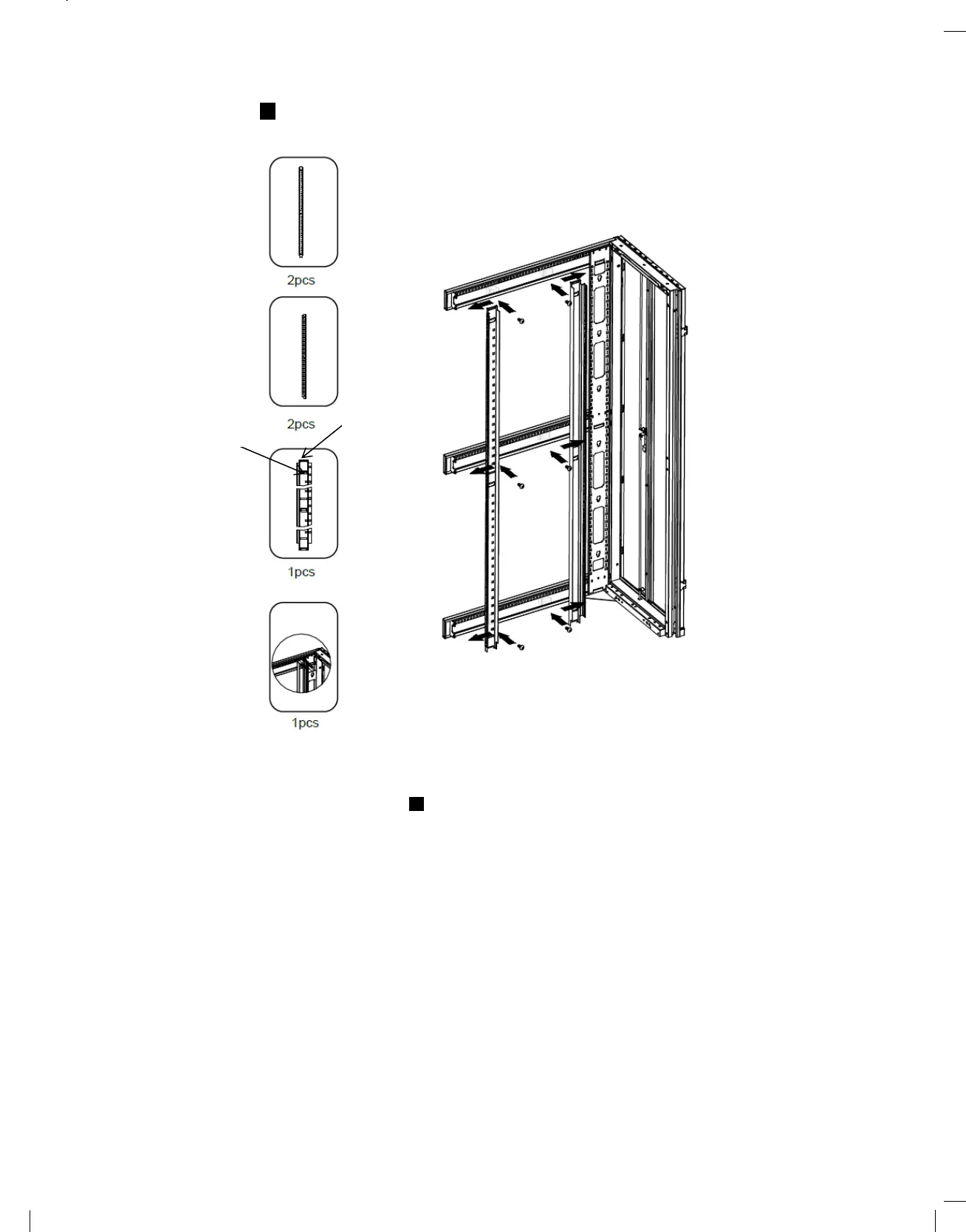

⚫ Step 6: Fixed 4pcs vertical rails to the horizontal beams
Hang on the vertical rails to the horizontal beams by the back ring.Then fixed the cable tray by GB/T6560-M4-8-ZB（Full thread）
(Cross pan head self-drilling screw)【S3 in accessories】
Back ring
Hole for screws fixing
Note: 24 pcs screws for PB series and 16pcs screws for EB series
( Washer S4 in accessories optional)
