Eaton RE Series - Side Panel Installation (EB Series)

RE SERIES_ RevA 3/5/2022
v
12
Option 2. For EB series

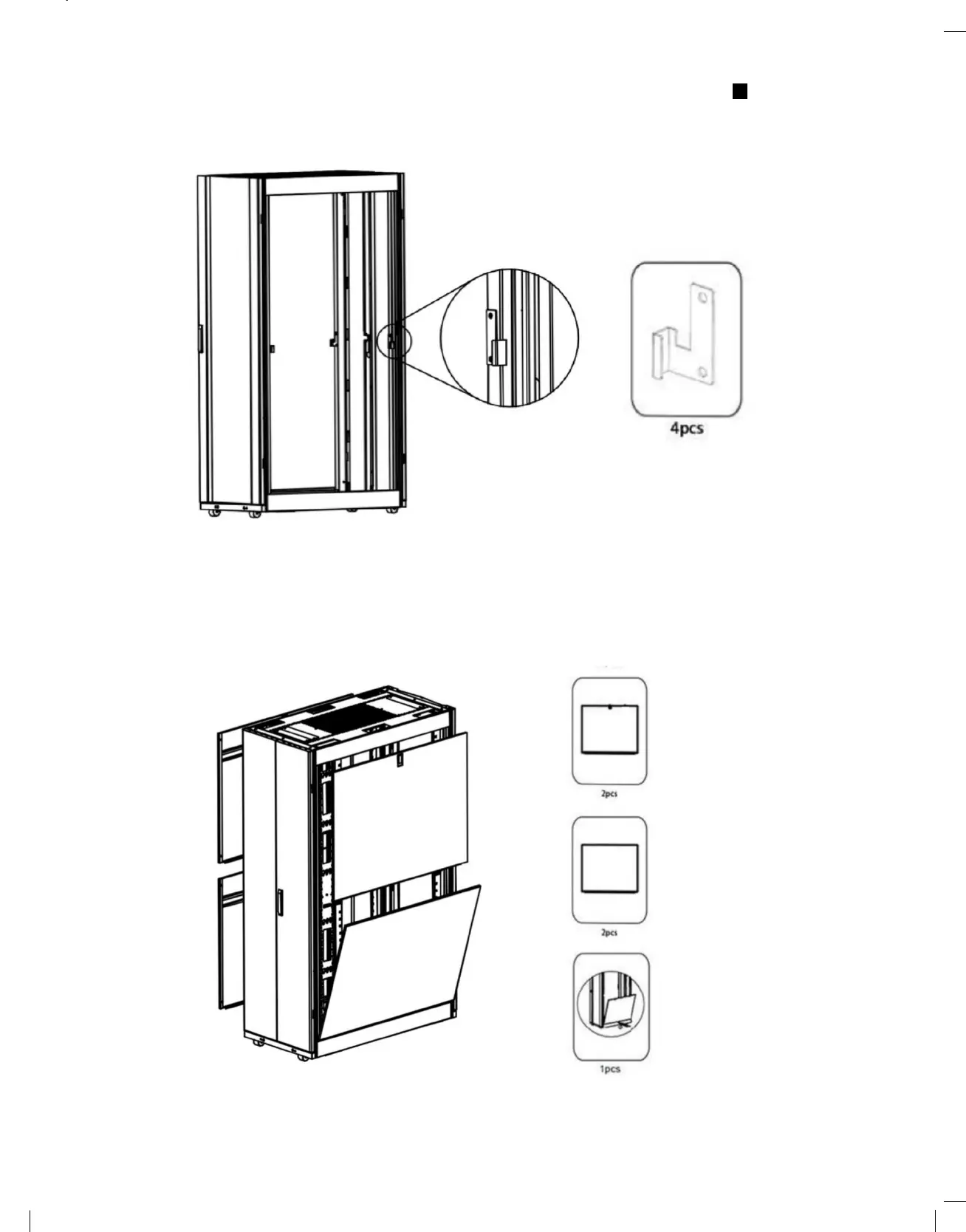

1. Side panel bracket installation: Fix the side panel bracket to the frame by GB/T818-M6-12-ZB (Cross pan head screw) 【S5 in accessories】2pcs
screws for each bracket and 8pcs for each enclosure.
2. Put the side panel without latch at the bottom (slide from top of the side panel bracket and hang on the bracket).The fixed the top side panel same as that
for PB series.
